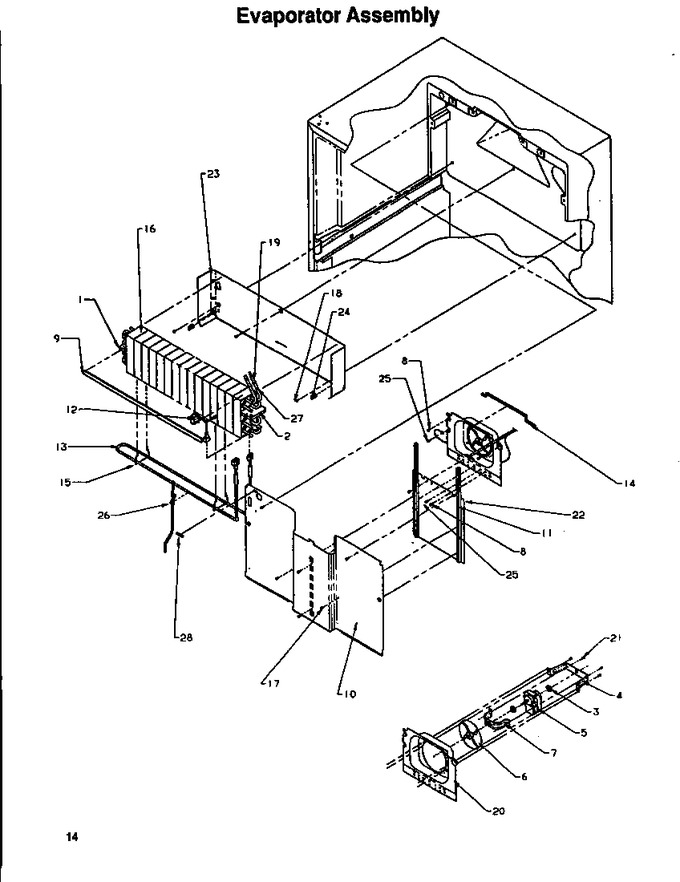

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10428301		Block, Evap. L.		Appelez-nous	-
2	10428202		Block, Evap. R		Appelez-nous	-
3	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
4	10492801		Brkt, Up Evap. Fan				$ 5.27
5	WP10449501		Motor-evap Fan   (Replaces: 10449501)				$ 240.54
6	W10116797		Assy, Fan-evap   (Replaces: 10855401)			Immediately	$ 8.56
7	10492701		Brkt, Lwr. Evap. Fan				$ 5.27
8	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
9	A3189349		Gasket, Foam		Appelez-nous	-
10	10432402		Cover, Evaporator		Appelez-nous	-
11	A3030356		Gasket		Appelez-nous	-
12	10442403		Thermostat-defrost, Closes 37		Appelez-nous	-
13	10428407		Heater, Evap		Appelez-nous	-
14	A3030354		Gasket		Appelez-nous	-
15	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
16	R0170060		Assy,low Side		Appelez-nous	-
17	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
18	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
19	M0321204		Wire Tie		Appelez-nous	-
20	10422304		Shroud, Evap. Fan		Appelez-nous	-
21	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
22	10440707		Plate, Evap Cov.		Appelez-nous	-
23	10427710		Shield, Evap.		Appelez-nous	-
24	10442301		Clip, Evaporator		Appelez-nous	-
25	WP489399		Screw   (Replaces: M0232903)				$ 7.30
26	10586601		Clip, Ht Transfer		Appelez-nous	-
27	M0321209		Tie-elect.		Appelez-nous	-
28	A3124301		Plug		Appelez-nous	-
NI	M0321041		Sleeve, Vinyl		Appelez-nous	-
