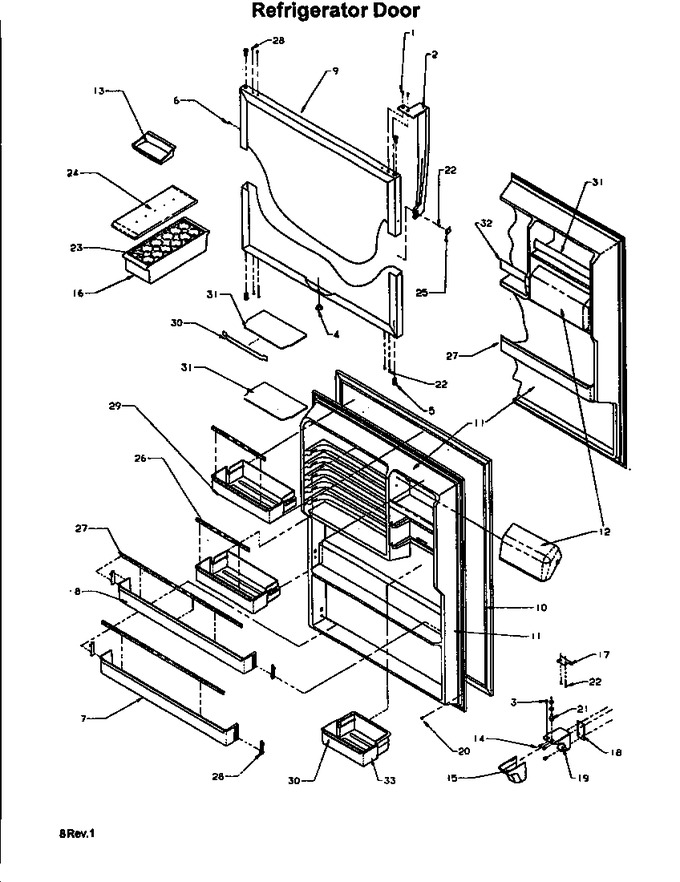

THI18S3L (BOM: P1195401W L) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WPW10348409	Screw (Replaces: M0221718)		Immediately	$ 8.20
2	10253514	Assy, Ref Hndl L	Appelez-nous	-
2	10253510	Handle Assy Ref W	Appelez-nous	-
3	M0310330	Plug, Button White	Appelez-nous	-
4	M0310308	Plug, Button (wht)	Appelez-nous	-
5	10393802	Bushing, Door (wht)	Appelez-nous	-
6	M0310730	Plug Button (almond)	Appelez-nous	-
6	WP67001130	Plug, Top Hinge Button (wht) (Replaces: M0310729)		Immediately	$ 5.98
7	10419203	Retainer, Ref Door	Appelez-nous	-
8	10419103	Retainer, Ref Door	Appelez-nous	-
9	10925404L	Assy, Ref Dr(alm)	Appelez-nous	-
9	10925404W	Ass`y, Ref Door (white)	Appelez-nous	-
10	WP12550109Q	Gasket,ref Dr(white) (Replaces: 10456801)		Immediately	$ 322.33
11	10461705	Liner,ref Door	Appelez-nous	-
12	10423414	Door,dairy	Appelez-nous	-
13	10310901	Tray, Butter	Appelez-nous	-
14	WP67006715	Screw (Replaces: M0233847)			$ 7.55
15	10462802	Cover, Hinge Lower (white)	Appelez-nous	-
15	10462804	Cover, L Hinge Lw	Appelez-nous	-
16	10423128	Bin-utility	Appelez-nous	-
17	10447102	Stop, Door	Appelez-nous	-
18	10447902	Shim Hinge	Appelez-nous	-
18	10447901	Shim, Btm Hinge	Appelez-nous	-
19	10433209	Hinge, Bottom Black	Appelez-nous	-
19	10433208	Hinge, Bottom White	Appelez-nous	-
20	M0219730	Screw			$ 7.65
21	67007018	Pin, Hinge (btm) (Replaces: 10200801)		Immediately	$ 8.62
22	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
23	10436504	Tray, Egg	Appelez-nous	-
25	10201806	Cover- Hndl Screw Almond	Appelez-nous	-
25	10201802	Cover-handle Screw W	Appelez-nous	-
26	10183979	Trim- Door Shelf	Appelez-nous	-
27	10183981	Trim-door Shelf	Appelez-nous	-
28	10202001	Clip, Retainer	Appelez-nous	-
29	10419703	Shelf, Ref Door	Appelez-nous	-
30	10183980	Trim-door Shelf	Appelez-nous	-
33	10502901	Bucket, Ref Door (plain)	Appelez-nous	-
