SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Add On Ice-maker


03 - Condenser


04 - Controls


05 - Door


06 - Door


07 - Evap


08 - Evap


09 - Heat Exchanger


10 - Shelves

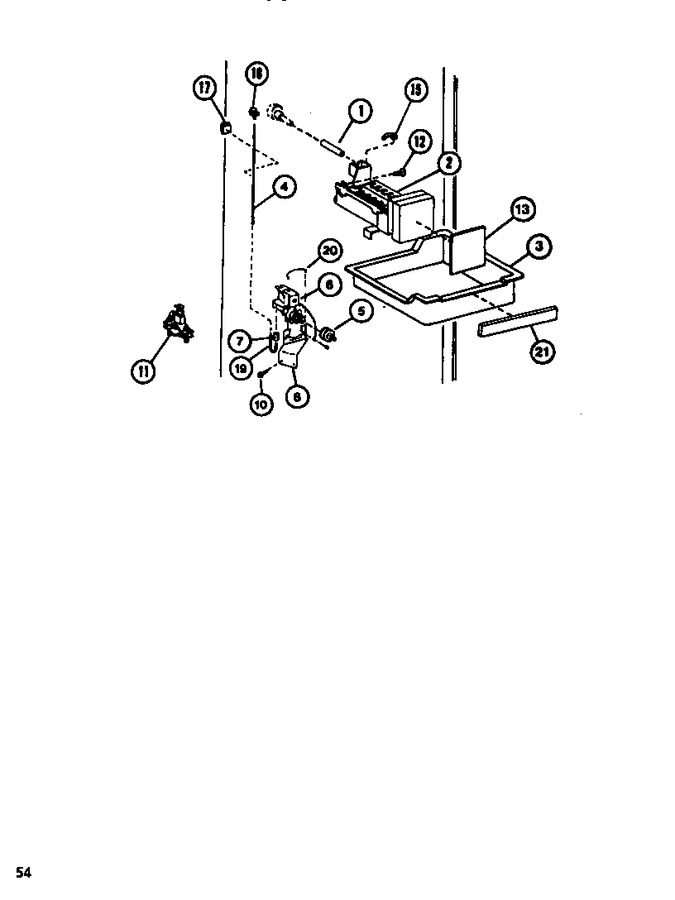

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3127401		Tube		Appelez-nous	-
2	D7824706Q		Ice Maker   (Replaces: D7824701)			Immediately	$ 167.35
3	WP67001255		Pan, Ice   (Replaces: D7621116)				$ 213.23
4	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 13.05
5	10127801		Coupling		Appelez-nous	-
6	4318047		Valve-water K   (Replaces: D7712602)			Immediately	$ 74.09
7	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
8	D7701601		Brkt, Water Valve		Appelez-nous	-
10	681390		Screw   (Replaces: M0251015)				$ 13.71
11	A3034801		Saddle Valve		Appelez-nous	-
12	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
13	C8963608		Insert		Appelez-nous	-
13	C8963607		Insert		Appelez-nous	-
13	C8963609		Insert		Appelez-nous	-
15	B5720301		Clip		Appelez-nous	-
17	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
19	A1055101		Spring, Antikink		Appelez-nous	-
20	B8374701		Clip, Water Valve		Appelez-nous	-
21	C8987002		Insert, Ice Pan		Appelez-nous	-
21	C8987001		Insert, Ice Pan		Appelez-nous	-
21	C8987003		Insert, Ice Pan		Appelez-nous	-
NI	A1056002		Inst. Instruction Im		Appelez-nous	-
NI	W10126747		Icek P7621310w Add On Ice-make		Appelez-nous	-
NI	M0102301		Clamp		Appelez-nous	-
NI	M0311301		Plug Button		Appelez-nous	-
NI	A3124301		Plug		Appelez-nous	-
NI	M0211116		Screw, Sm		Appelez-nous	-
NI	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60

    View Diagram in Separate Window       Print Part List
