SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Add On Ice-maker


03 - Condenser


04 - Controls


05 - Door


06 - Door


07 - Evap


08 - Evap


09 - Heat Exchanger


10 - Shelves

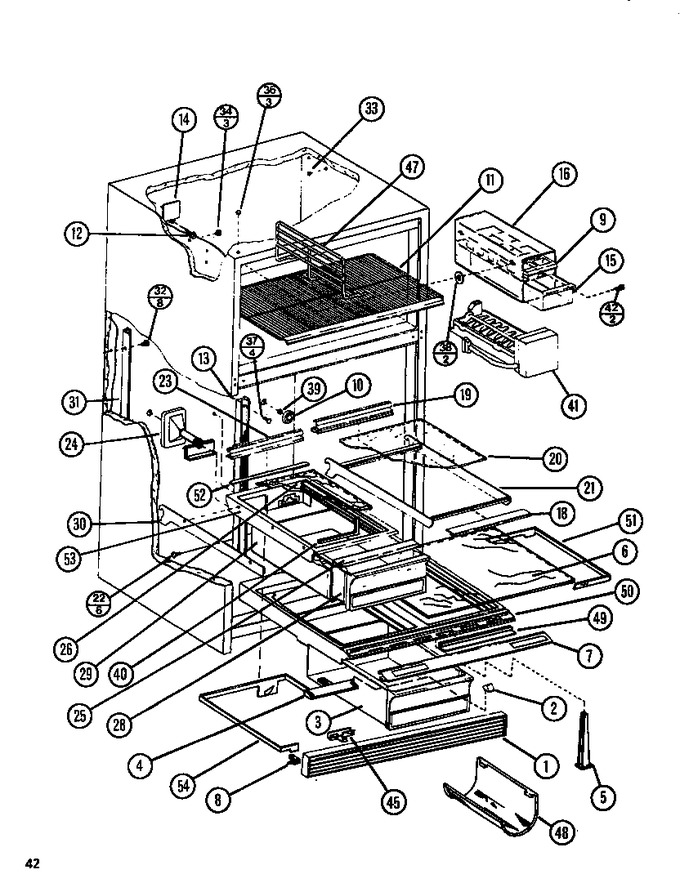

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520503		Grille-toe-b K		Appelez-nous	-
2	10038401		Knob, Crisper Control		Appelez-nous	-
3	D7581025		Pan Crisper		Appelez-nous	-
4	D7860601		Slide, Crisper Control		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7421260		Glass Crisper Top Gg		Appelez-nous	-
7	D7616626		Trim		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
10	M0310314		Plug		Appelez-nous	-
11	D7580706		Shelf, Frz		Appelez-nous	-
12	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
13	D7599002		Ladder, Center		Appelez-nous	-
18	10049909		Trim, Shelf		Appelez-nous	-
19	C8913601		Trim, Shelf		Appelez-nous	-
20	D7421285		Glass Shelf		Appelez-nous	-
21	D7871003		Frame, Cant.		Appelez-nous	-
22	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
23	C8990401		Trim, Rear Shelf		Appelez-nous	-
24	D7859303		Grommet, Meatkeeper		Appelez-nous	-
25	10049911		Trim		Appelez-nous	-
26	D7421257		Glass Shelf M.k		Appelez-nous	-
28	D7698316		Meat Pan		Appelez-nous	-
29	D7698105		Sleeve, Meat Keeper		Appelez-nous	-
30	D7862906		Blank Side Rail		Appelez-nous	-
30	D7862905		Blank Side Rail		Appelez-nous	-
31	D7599105		Ladder, Side		Appelez-nous	-
32	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
33	M0311301		Plug Button		Appelez-nous	-
36	M0310716		Plug		Appelez-nous	-
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 8.21
37	M0230923		Screw		Appelez-nous	-
39	B8362502		Insul. Mk Plug		Appelez-nous	-
40	A3263905		Gasket-per Ft		Appelez-nous	-
41	Y00000000		See Note Factory Installed Ice Maker See Pages 44 And 45		Appelez-nous	-
45	D7859401		Slide-mk Control		Appelez-nous	-
47	D7806001		Shelf Wire		Appelez-nous	-
48	D7547604		Bottle Rack		Appelez-nous	-
49	D7718402		Seal Crisper		Appelez-nous	-
50	D7856503		Frame		Appelez-nous	-
51	D7859603		Band Crisper Control		Appelez-nous	-
52	10043101		Ext. Rear Glass		Appelez-nous	-
53	D7853301		Frame, M.k		Appelez-nous	-
54	D7859503		Band M.k. Control		Appelez-nous	-
NI	D7871137		Glass Shelf Assembly		Appelez-nous	-
NI	D7871138		Glass Shelf Assembly		Appelez-nous	-
NI	R0179130		Glass Crisper Top Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58

    View Diagram in Separate Window       Print Part List
