SELECT A DIAGRAM
01 - 8 Cube Compact Ice Maker
02 - Add On Ice-maker

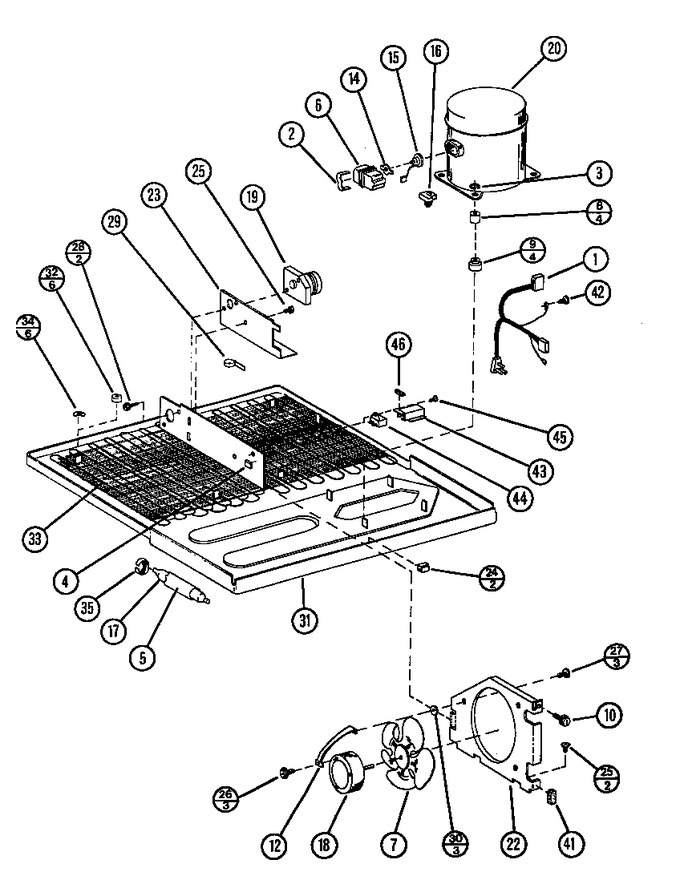

03 - Condenser
04 - Controls
05 - Door
06 - Door
07 - Evap
08 - Evap
09 - Heat Exchanger
10 - Shelves
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10104801 | Harness M.c. |
|
- | |||||
| 2 | YB8358601 | Bale Strap |
|
- | |||||
| 3 | B8352901 | Clip Comp |
|
- | |||||
| 4 | A9008301 | Felt |
|
- | |||||
| 5 | B0523585 | Insulation Batt Per Foot |
|
- | |||||
| 6 | C8960801 | Term Cover |
|
- | |||||
| 7 | B5742601 | Blade, Fan |
|
- | |||||
| 8 | A3072001 | Sleeve K |
|
- | |||||
| 9 | WPW10169124 | Grommet (Replaces: B8333401) |
|
$ 7.55 | |||||
| 10 | WP489069 | Screw-sd (Replaces: M0233704) |
|
Immediately | $ 8.40 | ||||
| 12 | C8982101 | Bracket, Cond Motor |
|
- | |||||
| 14 | B8358301 | Spring, Overload |
|
- | |||||
| 15 | C8906206 | Overload |
|
- | |||||
| 16 | C8931503 | Relay |
|
- | |||||
| 17 | WPB2150504 | Drier (Replaces: B5715001) |
|
$ 136.98 | |||||
| 18 | 833697 | Motor, Fan (Replaces: D7584001) |
|
Immediately | $ 109.14 | ||||
| 19 | D7790401 | Timer, Defrost |
|
- | |||||
| 20 | 30-FF10HBK1 | Compressor Aea1410axa (Replaces: D7736204) |
|
$ 833.75 | |||||
| 22 | D7691002 | Cond. Fan Shrd |
|
- | |||||
| 23 | D7690801 | Timer Bracket |
|
- | |||||
| 24 | M0110508 | Clip |
|
- | |||||
| 25 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 26 | M0223803 | Screw |
|
- | |||||
| 27 | M0221332 | Screw, Shoulder |
|
- | |||||
| 28 | M0218118 | Screw |
|
- | |||||
| 29 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 30 | M0500107 | Grommet K |
|
- | |||||
| 31 | D7595411 | Base Pan - Ptd |
|
- | |||||
| 32 | B8346301 | Spacer Cond. |
|
- | |||||
| 33 | D7654301 | Condenser Pntd |
|
- | |||||
| 34 | M0293703 | Speednut |
|
- | |||||
| 35 | M0104002 | Clamp-drier |
|
- | |||||
| 41 | B5759604 | Gasket |
|
- | |||||
| 42 | M0253916 | Screw |
|
- | |||||
| 43 | C8931101 | Shield-capacitor |
|
- | |||||
| 44 | WPW10662129 | Capacitor (Replaces: C8931602) |
|
Immediately | $ 58.86 | ||||
| 45 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 46 | A3261703 | Grommet Per In. |
|
- |
