SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Door Assemblies And Handles
02 - Door Assemblies And Handles

Diagram for 03 - Door Hinges And Fz Shelf
03 - Door Hinges And Fz Shelf

Diagram for 04 - Evap And Fan Motor Assemblies
04 - Evap And Fan Motor Assemblies

Diagram for 05 - Ice Maker Assy Parts
05 - Ice Maker Assy Parts

Diagram for 06 - Interior Cabinet/drain Block & Ctrl Assy
06 - Interior Cabinet/drain Block & Ctrl Assy

Diagram for 07 - Ladders, Lower Cabinet And Rollers
07 - Ladders, Lower Cabinet And Rollers

Diagram for 08 - Machine Compartment
08 - Machine Compartment

Diagram for 09 - Shelving Assemblies
09 - Shelving Assemblies


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 10925612W Assy, Fz Dr Foam Appelez-nous -
15 10925404W Ass`y, Ref Door (white) Appelez-nous -
21 10253528 Assy, W Frz Hndl Appelez-nous -
22 M0219730 Screw Special Order $ 7.65

24 10253527 Assy, W Ref Handle Appelez-nous -
25 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

31 10201801 Cover-handle Screw W Appelez-nous -
34 10201802 Cover-handle Screw W Appelez-nous -
35 M0219730 Screw Special Order $ 7.65

41 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

42 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
44 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

51 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

52 12968202W Stop, Door (wht)   (Replaces: 10447108) Special Order $ 69.29

54 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

61 10184301 Plug-nameplate W Appelez-nous -
62 WP12550110Q Gasket,fz Dr(white)   (Replaces: 10456832) Special Order $ 298.65

63 10961001 Bushing, Door (wht) Appelez-nous -
65 12968202W Stop, Door (wht)   (Replaces: 10447108) Special Order $ 69.29

66 10961001 Bushing, Door (wht) Appelez-nous -
71 10184401 Nameplate, Handle Appelez-nous -
72 10461001 Liner, Frz Door (18) Appelez-nous -
81 10184501 Pad Nameplate Appelez-nous -
84 10419104 Retainer, Ref Door Appelez-nous -
85 10419204 Retainer, Ref Door Appelez-nous -
92 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

94 10502905 Bucket, Ref Door (plain) Appelez-nous -
95 WP12550109Q Gasket,ref Dr(white)   (Replaces: 10456831) In-Stock Immediately $ 322.33

101 10419204 Retainer, Ref Door Appelez-nous -
102 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

104 10423415 Door, Dairy Appelez-nous -
112 10202001 Clip, Retainer Appelez-nous -
113 M0310308 Plug, Button (wht) Appelez-nous -
114 10419704 Shelf, Ref Door Appelez-nous -
125 10461705 Liner,ref Door Appelez-nous -
126 M0310308 Plug, Button (wht) Appelez-nous -
195 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

215 10202001 Clip, Retainer Appelez-nous -
253 12028601 Bushing, Door (wht) Appelez-nous -
263 10252903 Filter, Bushing Appelez-nous -
5003 10686401 Plug Button Appelez-nous -
8006 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20


    View Diagram in Separate Window     Print Icon   Print Part List

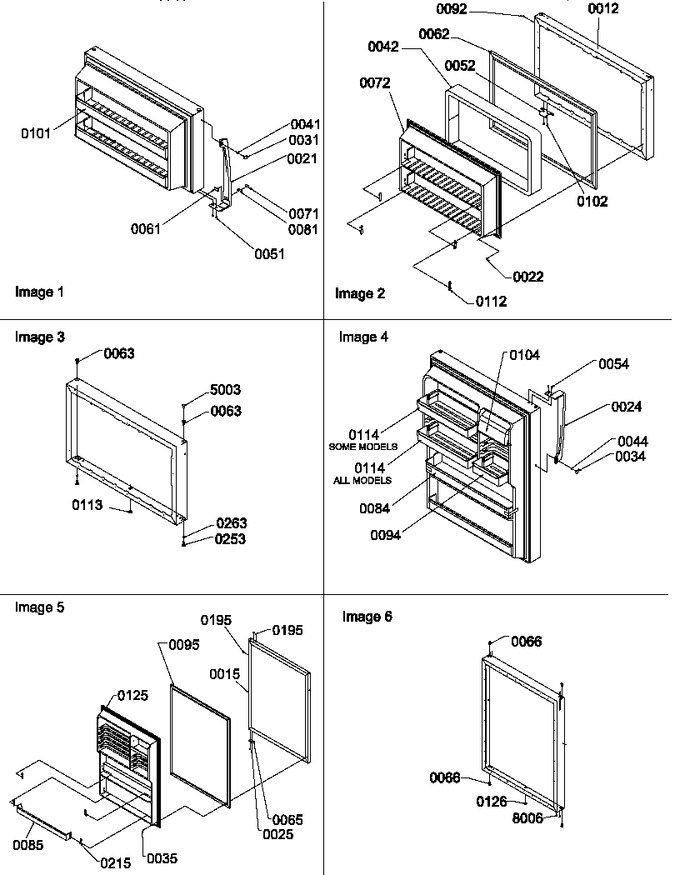

Diagram for TM18V2W (BOM: P1318002W W)
