Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 10433805 Rail, Crisper Back Appelez-nous -
42 10432701 Rail, Side Crisper Appelez-nous -
52 10432702 Rail, Side Crisper Appelez-nous -
62 10432803 Rail, Ctr. Crisper Appelez-nous -
72 10432804 Rail, Ctr. Crisper Appelez-nous -
82 10687701 Rail, Crisper Fr0nt(r) Appelez-nous -
92 10687702 Rail, Crisper Front(l) Appelez-nous -
102 10435605 Rail, Crisper Back Appelez-nous -
132 10370016 Glass, Shelf (18) Appelez-nous -
172 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

182 10688053 Extr-l Crisp Front Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

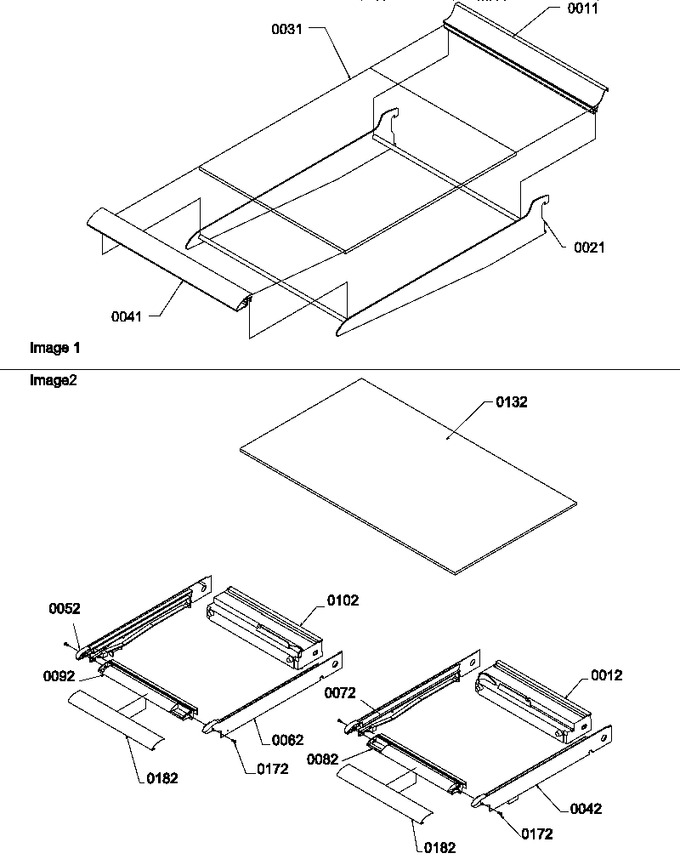

Diagram for TM18V2W (BOM: P1318002W W)
