01 - Cabinet Back


02 - Door Assemblies And Handles


03 - Door Hinges And Fz Shelf


04 - Evap And Fan Motor Assemblies


05 - Ice Maker Assy Parts


06 - Interior Cabinet/drain Block & Ctrl Assy


07 - Ladders, Lower Cabinet And Rollers


08 - Machine Compartment


09 - Shelving Assemblies

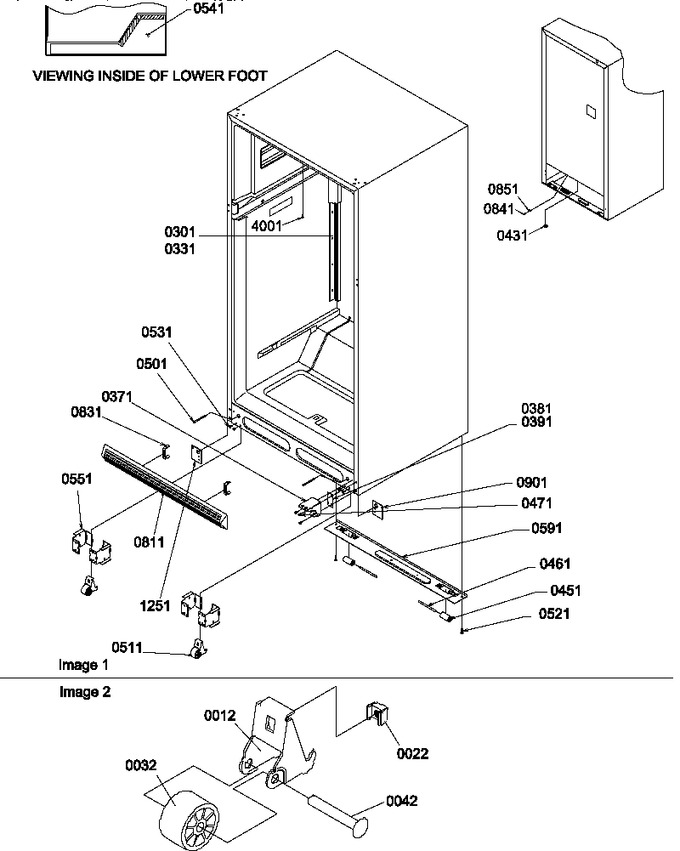

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10514801		Bracket, Roller		Appelez-nous	-
22	M0286708		Nut, Speed				$ 47.85
32	WP10450603		Roller   (Replaces: 10450602)				$ 8.27
42	M1205302		Rivet				$ 5.85
301	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
331	D7599105		Ladder, Side		Appelez-nous	-
371	10433208		Hinge, Bottom White		Appelez-nous	-
381	10447904		Shim Hinge		Appelez-nous	-
391	10447903		Shim, Btm Hinge		Appelez-nous	-
431	A3076901		Plug-button				$ 5.70
451	10450701		Roller, Rear				$ 28.91
461	10450901		Axle, Roller		Appelez-nous	-
471	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
501	M0204338		Screw, Mach		Appelez-nous	-
511	10476101		Assy, Roller Brkt		Appelez-nous	-
521	M0260242		Screw, Tf		Appelez-nous	-
531	W11573574		Screw, Sm   (Replaces: M0211031)			Immediately	$ 14.72
541	10663001		Insul., R. Foot		Appelez-nous	-
551	10427204		Housing-roller		Appelez-nous	-
591	10427110		Cabinet Brace-pnt		Appelez-nous	-
811	10474907		Grille, Toe (white) (19)		Appelez-nous	-
831	10551502		Clip, Toe Grille				$ 5.84
841	M0227217		Screw, Sm		Appelez-nous	-
851	10547101		Clip, Tube		Appelez-nous	-
901	10567205		Plate-lw Hng Tap		Appelez-nous	-
1251	10567206		Plate-lw Hng Tap		Appelez-nous	-
4001	M0311602		Plug, Button (white)		Appelez-nous	-
