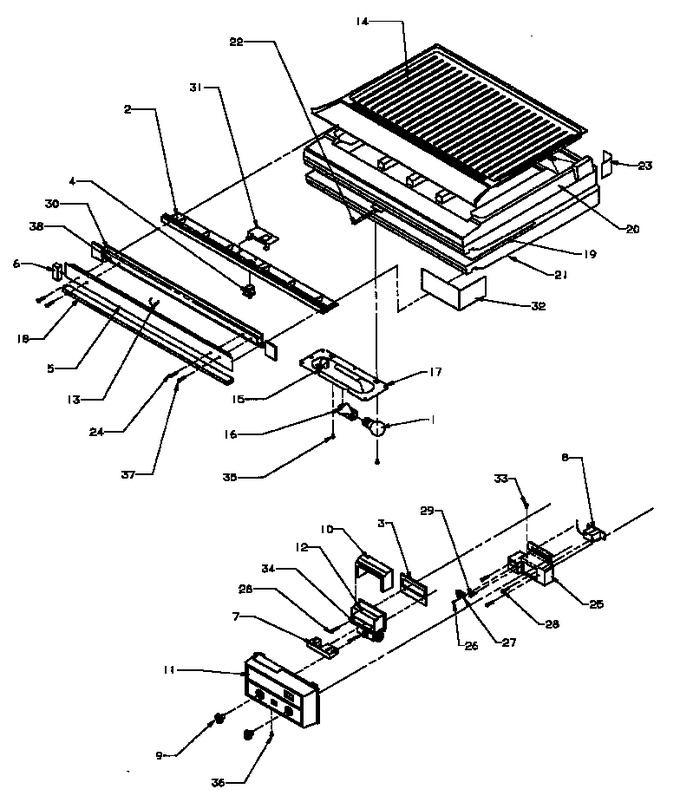

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 2 | D7653003 | Breaker, Ref Top V |
|
- | |||||
| 3 | B8345401 | Gasket, Damper |
|
- | |||||
| 4 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 37.23 | ||||
| 5 | C8842523 | Mullion, Center E |
|
- | |||||
| 6 | B5759626 | Gasket, Sealing |
|
- | |||||
| 7 | C8902601 | Insert, Control |
|
- | |||||
| 8 | C8907302 | Cold Control Fzr |
|
- | |||||
| 8 | C8907301 | Cold Control |
|
$ 104.73 | |||||
| 9 | D7009802 | Knob |
|
- | |||||
| 10 | D7543201 | Insulation Damper |
|
- | |||||
| 11 | D7545020 | Cover Control |
|
- | |||||
| 12 | D7547402 | Damper Control, Warm 26.5°f, N |
|
- | |||||
| 13 | D7654510 | Heater, Mullion |
|
- | |||||
| 14 | D7714706 | Bottom, Freezer |
|
- | |||||
| 15 | B5733302 | Clip, Ground |
|
- | |||||
| 16 | D7714403 | Socket-light |
|
- | |||||
| 17 | C8730102 | Shield, Light |
|
- | |||||
| 18 | B5759628 | Gasket K |
|
- | |||||
| 19 | C8887904 | Insul. Dr Block |
|
- | |||||
| 19 | C8887903 | Insulation |
|
- | |||||
| 20 | 10491902 | Drain-block |
|
- | |||||
| 20 | 10491903 | Drain-block |
|
- | |||||
| 21 | D7539310 | Top Ref. |
|
- | |||||
| 21 | D7539312 | Top Ref. |
|
- | |||||
| 22 | 10105001 | Harness, Mullion |
|
- | |||||
| 23 | M0275117 | Tape Per Roll A |
|
- | |||||
| 24 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 9.38 | |||||
| 25 | D7713802 | Bracket, Control |
|
- | |||||
| 26 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.88 | ||||
| 27 | M0350101 | Switch |
|
- | |||||
| 28 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 29 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.82 | ||||
| 30 | B0523584 | Insulation Per Ft. |
|
- | |||||
| 31 | C8932201 | Barrier Lt-sw K |
|
- | |||||
| 32 | 876370 | Insulation, Batt (Replaces: B0523561) |
|
$ 231.56 | |||||
| 33 | M0253916 | Screw |
|
- | |||||
| 34 | A3263906 | Gasket-per Ft |
|
- | |||||
| 35 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 7.94 | ||||
| 36 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 6.95 | ||||
| 37 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.02 | |||||
| 38 | 10321101 | Channel, Mullion |
|
- |
