Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10348409 Screw   (Replaces: M0222429) In-Stock Immediately $ 7.76

2 10201810 Cover, Handle Screw-blk Appelez-nous -
3 10253522 Ref Handle Assy Bk Appelez-nous -
4 10202001 Clip, Retainer Appelez-nous -
5 10339806 Trim, Top Frz/referig Appelez-nous -
6 10183925 Trim Dr. Shelf Appelez-nous -
7 10393802 Bushing, Door (wht) Appelez-nous -
8 M0310713 Plug Appelez-nous -
9 10183105 Retainer Ref Door Appelez-nous -
10 10183005 Shelf Ref Door Appelez-nous -
11 10263608E Ref Door Foam Assembly, Black Appelez-nous -
12 10339726 Trim Appelez-nous -
13 D7605122 Gasket, Ref Door, Black Appelez-nous -
14 10184901 Liner Ref Door Appelez-nous -
15 10182904 Door-dairy Appelez-nous -
16 10310901 Tray, Butter Appelez-nous -
17 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.19

18 10185002 Container Server Appelez-nous -
19 10182702 Shelf, Dairy Appelez-nous -
20 10182802 Shelf, Container Ser. Appelez-nous -
21 D7805909 Cover, Egg Bucket Appelez-nous -
22 10266107 Stop, Satin Chrome Door Appelez-nous -
23 D7695616 Egg Bucket Appelez-nous -
24 10399501 Kit,btm Hinge Shim Appelez-nous -
25 10163614 Bottom Hinge Appelez-nous -
26 M0219730 Screw Special Order $ 7.65

27 67007018 Pin, Hinge (btm)   (Replaces: 10200801) In-Stock Immediately $ 8.21

28 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.00

29 10182405 Retainer-tall Pkg Appelez-nous -
30 10183807 Divider Door Shelf Appelez-nous -
31 10183926 Trim Dr Shelf Appelez-nous -
32 M0275148 Tape Per Roll K Appelez-nous -
33 10339725 Trim Appelez-nous -
34 WPW10348409 Mounting Screw   (Replaces: M0203944) In-Stock Immediately $ 7.76

35 10183705 Snugger, Door Shelf (shelf Div Appelez-nous -
36 W11245710 Screw, Sm (stnls)   (Replaces: M0210417) In-Stock Immediately $ 14.05

37 10339903 Trim, Bottom Frz-refrig Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

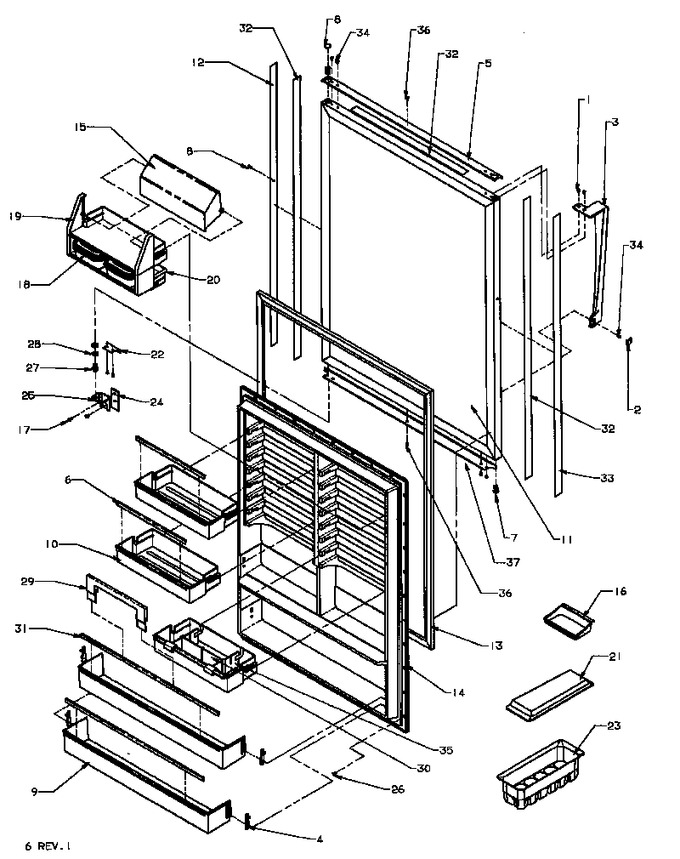

Diagram for 85165 (BOM: P1117113W E)
