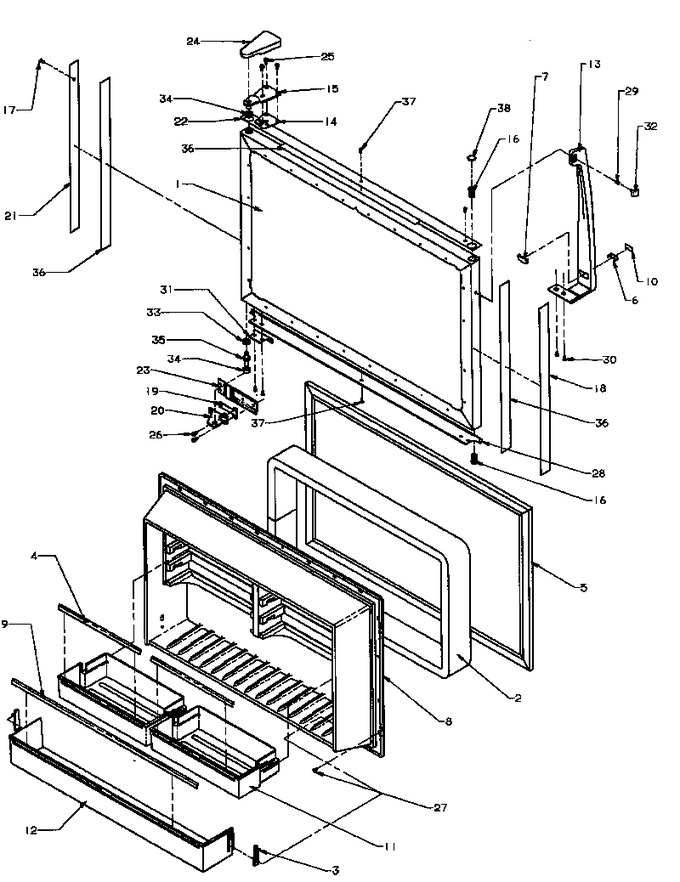

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10263508E | Assy Frz Door Fm |
|
- | |||||
| 2 | 876370 | Insulation Bott (1= 1ft) (Replaces: B0523588) |
|
$ 231.56 | |||||
| 3 | 10202001 | Clip, Retainer |
|
- | |||||
| 4 | 10183927 | Trim Dr. Shelf |
|
- | |||||
| 5 | D7605121 | Gasket, Door Frz, Black |
|
- | |||||
| 6 | 10184501 | Pad Nameplate |
|
- | |||||
| 7 | 10184305 | Plug Nameplate |
|
- | |||||
| 8 | 10184602 | Liner Fz. Door |
|
- | |||||
| 8 | 10184801 | Liner Fz Door |
|
- | |||||
| 9 | 10183928 | Trim Door Shelf |
|
- | |||||
| 10 | 10184401 | Nameplate, Handle |
|
- | |||||
| 11 | 10183205 | Shelf Fz Door |
|
- | |||||
| 12 | 10183305 | Retainer Fz Door |
|
- | |||||
| 13 | 10253521 | Fz Handle Assy Bk |
|
- | |||||
| 14 | 10200302 | Shim, Top Hinge |
|
- | |||||
| 14 | 10200303 | Shim, Top Hinge |
|
- | |||||
| 14 | 10200301 | Shim, Top Hinge |
|
- | |||||
| 15 | D7757806 | Top Hinge Assy |
|
- | |||||
| 16 | 10393802 | Bushing, Door (wht) |
|
- | |||||
| 17 | M0310713 | Plug |
|
- | |||||
| 18 | 10339721 | Trim |
|
- | |||||
| 19 | 10200506 | Shim, Center Hinge |
|
- | |||||
| 19 | 10200504 | Shim, Center Hinge |
|
- | |||||
| 19 | 10200505 | Shim, Center Hinge |
|
- | |||||
| 20 | 10200701 | Hinge, Center |
|
- | |||||
| 21 | 10339722 | Trim |
|
- | |||||
| 22 | 10339805 | Trim-top Fz |
|
- | |||||
| 23 | 10321201 | Top Strip |
|
- | |||||
| 24 | 10182604 | Cover, Hinge (ebony) |
|
- | |||||
| 25 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 9.38 | |||||
| 26 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.02 | |||||
| 27 | M0219730 | Screw |
|
$ 7.65 | |||||
| 28 | 10339903 | Trim, Bottom Frz-refrig |
|
- | |||||
| 29 | WPW10348409 | Mounting Screw (Replaces: M0203944) |
|
Immediately | $ 7.76 | ||||
| 30 | WPW10348409 | Screw (Replaces: M0222429) |
|
Immediately | $ 7.76 | ||||
| 31 | 10200202 | Stop, Door |
|
- | |||||
| 32 | 10201809 | Cover, Handle Screw-blk |
|
- | |||||
| 33 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) |
|
Immediately | $ 8.00 | ||||
| 34 | M0274058 | Shim, Non Metal (wht) |
|
$ 5.83 | |||||
| 35 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.27 | |||||
| 36 | M0275148 | Tape Per Roll K |
|
- | |||||
| 37 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.05 | ||||
| 38 | 10263705 | Plug, Button |
|
- |
