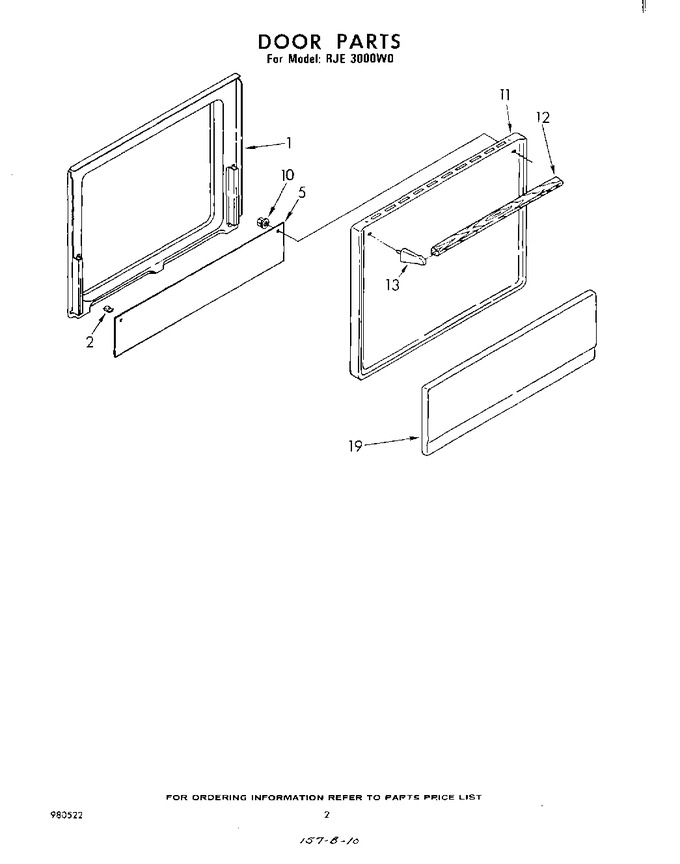

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327863		Liner, Door		Appelez-nous	-
2	338177		Clip (2)		Appelez-nous	-
5	309108		Panel, Weight Ballast		Appelez-nous	-
10	WP308499		Palnut   (Replaces: 308499)				$ 7.30
11	254217		Panel, Door (screw, 10a X 3/8 (3))		Appelez-nous	-
11	307889		Panel, Door (white)		Appelez-nous	-
11	307895		Panel, Door (golden Harvest)		Appelez-nous	-
11	307893		Panel, Door (coffee)		Appelez-nous	-
11	307891		Panel, Door (new Avocado)		Appelez-nous	-
11	307897		Panel, Door (almond)		Appelez-nous	-
11	WP488627		Panel, Door (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 8.11
12	308212		Handle, Oven Door		Appelez-nous	-
13	308123		End Cap, Handle		Appelez-nous	-
19	308862		Panel, Lower (almond)		Appelez-nous	-
19	246135		Panel, Lower (screw, 8d X 5/16)		Appelez-nous	-
19	308551		Panel, Lower (coffee)		Appelez-nous	-
19	308552		Panel, Lower (golden Harvest)		Appelez-nous	-
19	308549		Panel, Lower (white)		Appelez-nous	-
19	308550		Panel, Lower (new Avocado)		Appelez-nous	-
