SELECT A DIAGRAM

01 - Cooktop


02 - Door


03 - Control Panel


04 - Oven


05 - Literature And Optional

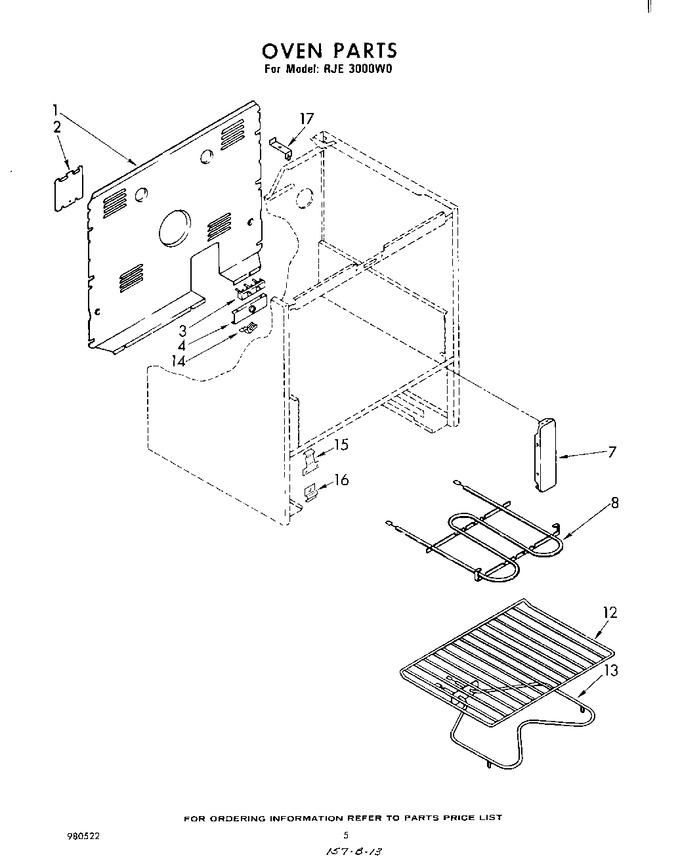

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307971		Cover, Rear		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 8.47
2	WP308544		Screw, 10-24 X 1/2 (2)   (Replaces: 308544)			Immediately	$ 8.30
2	307972		Cover, Access		Appelez-nous	-
3	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
3	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
3	WP112432		Nut (6)   (Replaces: 112432)				$ 8.63
4	WP681414		Screw, 10-24 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
4	307970		Bracket, Service		Appelez-nous	-
7	307981		Bracket, Mounting		Appelez-nous	-
8	W11656009		Unit, Broil (alternate)   (Replaces: 258107)		Appelez-nous	-
8	310218		Unit, Broil (alternate)		Appelez-nous	-
8	246127		Unit, Broil (screw, 10-32 X 5/8 (2))		Appelez-nous	-
12	308173		Rack, Oven		Appelez-nous	-
13	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
13	WP308180		Unit, Bake   (Replaces: 308180)				$ 133.33
14	WP681414		Screw, 10-32   (Replaces: 343631)			Immediately	$ 8.47
14	308498		Ground Strap		Appelez-nous	-
15	307958		Spring, Panel (2)		Appelez-nous	-
16	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
16	307957		Bracket, Mounting (2)		Appelez-nous	-
17	980522		List, Parts		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
17	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
17	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
17	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
17	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
17	799351		Thinner (1 Gal.)		Appelez-nous	-
17	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
17	261582		Grease		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 58.19
17	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 58.19
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	308494		Installation Instructions		Appelez-nous	-
17	310592		Guide, Use & Care		Appelez-nous	-
17	308500		Book, Cooking Guide		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	309102		Stand-off (2)		Appelez-nous	-
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
17	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
17	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
17	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
17	261888		New Avocado		Appelez-nous	-
17	261886		Coffee		Appelez-nous	-
17	261890		Golden Harvest		Appelez-nous	-
17	285006		Paint, Spray 13 Oz. (black)				$ 59.89
17	350942		Primer (white)   (Replaces: 206922)				$ 94.14
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	261891		Xgolden Harvest (uncut)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	261887		Xcoffee (uncut)		Appelez-nous	-
	261889		Xnew Avocado (uncut)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
