Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2 (8)   (Replaces: 343641) In-Stock Immediately $ 8.47

1 308157 Cover, Rear Appelez-nous -
2 487384 Thermostat, Oven (screw, 6-32 X 1/4 (2)) Appelez-nous -
2 308789 Thermostat, Oven (alternate) Appelez-nous -
2 308483 Thermostat, Oven (alternate) Appelez-nous -
3 309211 Clip, Speed Appelez-nous -
4 155023 Screw, 8-32 X 1/4 (2) In-Stock Immediately $ 7.91

4 310348 Switch, Selector Appelez-nous -
5 98084 Clip, End Cap Appelez-nous -
6 308144 End Cap, R.h. Appelez-nous -
6 308146 End Cap, L.h. Appelez-nous -
7 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

7 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 11.87

7 308858 End Trim (l.h.) Appelez-nous -
7 308854 End Trim (r.h.) Appelez-nous -
8 307828 Spring, Bezel (4) Appelez-nous -
9 307456 Bezel, Control Knob (4) Special Order $ 31.10

10 WP307458 Knob, Control (4)   (Replaces: 307458) Special Order $ 20.07

12 310327 Light, Indicator (surface Unit) (includes Illus. 22) Appelez-nous -
13 309260 Screw, 8-32 X 1/4 (8) Appelez-nous -
13 W10900107 Switch, Infinite (1) (use W/8`` Surface Unit)   (Replaces: 309205) In-Stock Immediately $ 57.63

13 WP3149401 Switch, Infinite (3) (use W/6`` Surface Unit)   (Replaces: 309204) Special Order $ 157.09

14 328682 Light, Indicator (oven) (alternate) Appelez-nous -
14 328683 Light, Indicator (oven) (alternate) Appelez-nous -
19 307831 Control Panel (screw, 8a X 1/2) Appelez-nous -
19 WP488627 Control Panel (screw, 8a X 1/2 (2))   (Replaces: 338156) Special Order $ 8.11

19 310654 Control Panel (coffee) Appelez-nous -
19 310653 Control Panel (almond) Appelez-nous -
19 310652 Control Panel (golden Harvest) Appelez-nous -
19 310651 Control Panel (new Avocado) Appelez-nous -
19 310650 Control Panel (white) Appelez-nous -
19 W11693756 Control Panel (screw, 8-18 X 5/8 (2))   (Replaces: 357670) In-Stock Immediately $ 14.76

22 309221 Lens, Red Appelez-nous -
23 328709 Knob, Thermostat Appelez-nous -
24 328707 Knob, Selector Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

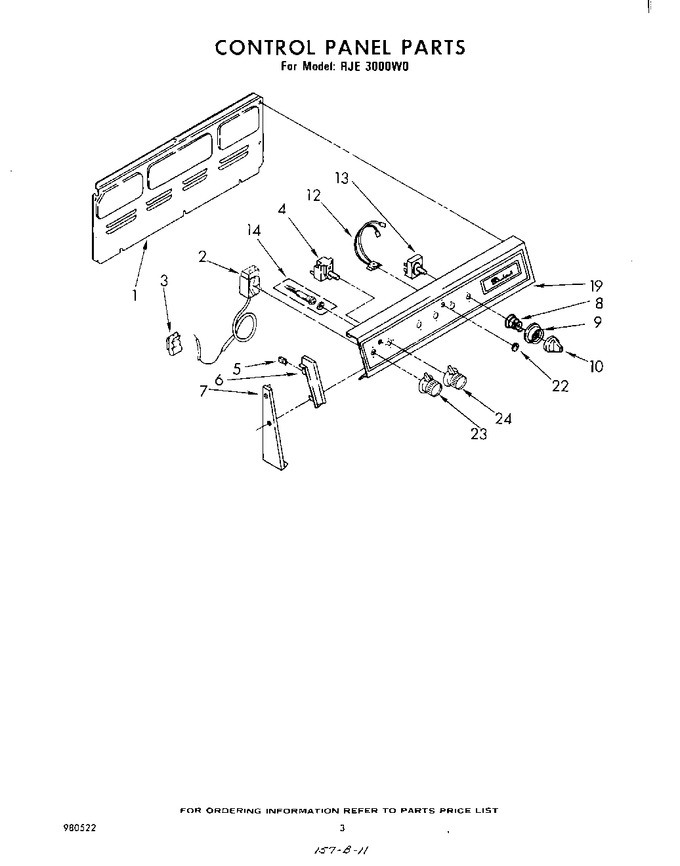

Diagram for RJE3000W0
