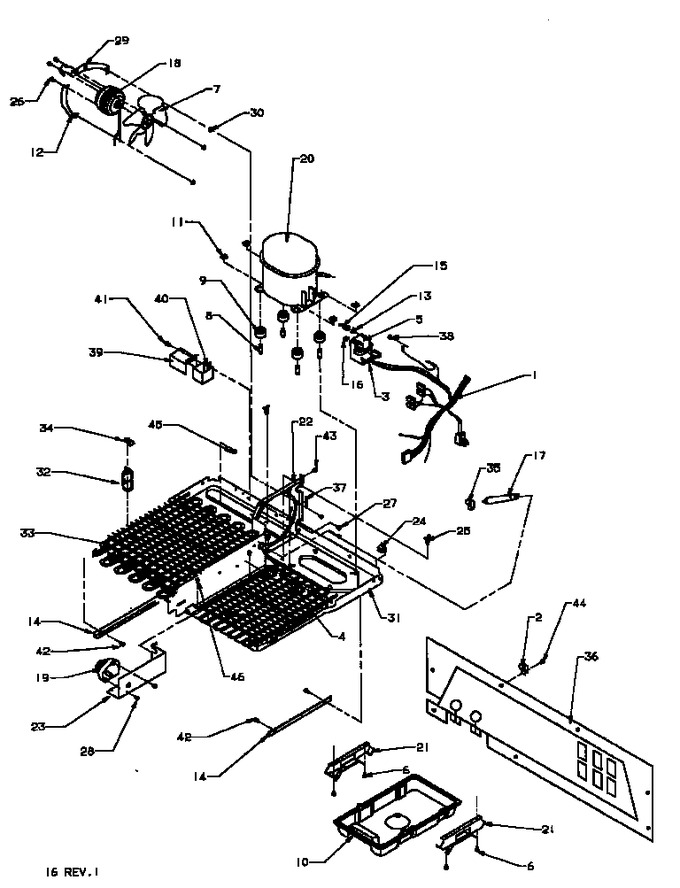

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10354601		Harness. M.c.		Appelez-nous	-
2	M0102301		Clamp		Appelez-nous	-
3	YB8358601		Bale Strap		Appelez-nous	-
4	A9008301		Felt		Appelez-nous	-
5	C8960801		Term Cover		Appelez-nous	-
6	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)			Immediately	$ 7.19
10	D7790601		Drain Pan		Appelez-nous	-
11	B8352901		Clip Comp		Appelez-nous	-
12	C8982101		Bracket, Cond Motor		Appelez-nous	-
13	B8358301		Spring, Overload		Appelez-nous	-
14	D7835501		Support M.c.		Appelez-nous	-
15	10377005		Overload		Appelez-nous	-
15	C8906203		Overload		Appelez-nous	-
16	C8931503		Relay		Appelez-nous	-
16	2154436		Relay-ptc   (Replaces: C8931502)				$ 134.94
17	WPB2150504		Drier   (Replaces: B5715001)				$ 130.46
18	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 88.15
19	R0168027		Kit, Defrost Timer   (Replaces: 10129303)			Immediately	$ 152.25
20	W10439652		Kit, Compressor (dan Nf7ak)   (Replaces: D7736201)				$ 421.14
20	30-FF10HBK1		Compressor Aea1410axa   (Replaces: D7736204)				$ 833.75
21	D7790501		Support Drain Pan		Appelez-nous	-
22	D7691002		Cond. Fan Shrd		Appelez-nous	-
23	D7690801		Timer Bracket		Appelez-nous	-
23	D7752701		Bracket, Timer		Appelez-nous	-
24	M0110508		Clip		Appelez-nous	-
25	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
26	M0223803		Screw		Appelez-nous	-
27	M0221332		Screw, Shoulder		Appelez-nous	-
28	M0218118		Screw		Appelez-nous	-
29	WPW10339879		Tie   (Replaces: M0321202)				$ 7.90
30	M0500107		Grommet K		Appelez-nous	-
31	D7595413		Base Pan		Appelez-nous	-
32	B8346301		Spacer Cond.		Appelez-nous	-
33	D7654301		Condenser Pntd		Appelez-nous	-
34	M0293703		Speednut		Appelez-nous	-
35	M0104002		Clamp-drier		Appelez-nous	-
36	C8890208		Back M.c. Comp		Appelez-nous	-
37	B5759604		Gasket		Appelez-nous	-
38	M0253916		Screw		Appelez-nous	-
39	10266401		Shield-capacitor		Appelez-nous	-
40	WPW10662129		Capacitor   (Replaces: C8931602)			Immediately	$ 58.86
41	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.83
42	M0217224		Screw		Appelez-nous	-
43	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86
44	M0219704		Screw		Appelez-nous	-
45	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 7.68
46	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 7.94
