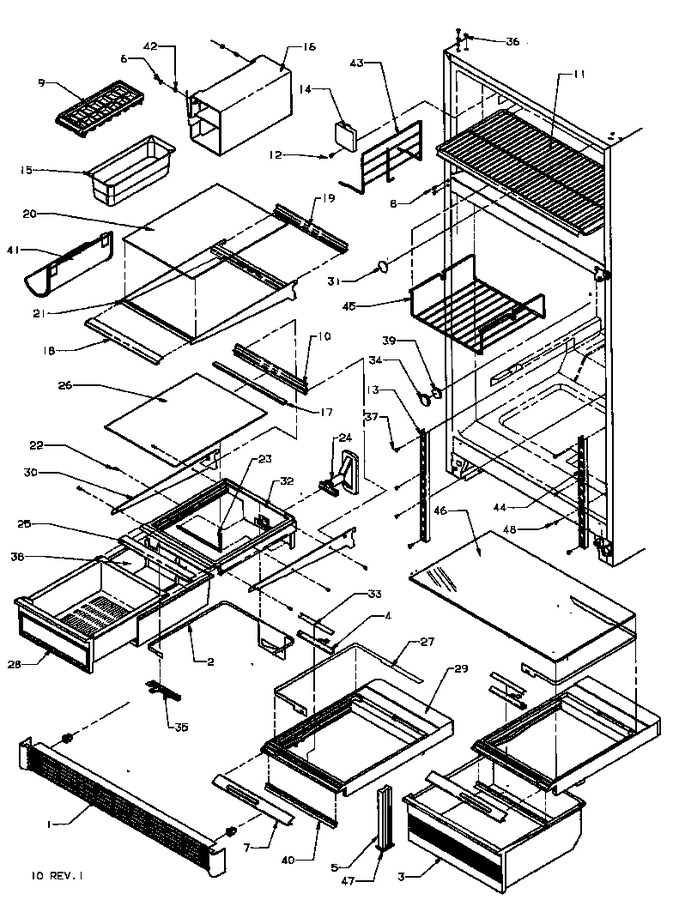

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520510 | Grille-toe-b K |
|
$ 44.22 | |||||
| 2 | D7859503 | Band M.k. Control |
|
- | |||||
| 3 | D7581033 | Pan Crisper |
|
- | |||||
| 4 | 10199813 | Slide Crisper Control |
|
- | |||||
| 4 | 10199812 | Slide Crisper Control |
|
- | |||||
| 5 | 10199601 | Post, Crisper Support |
|
- | |||||
| 6 | M0270508 | Washer |
|
- | |||||
| 7 | D7616674 | Trim |
|
- | |||||
| 7 | D7616675 | Trim Fz |
|
- | |||||
| 8 | M0226333 | Screw-tf, Left Side Of Center |
|
- | |||||
| 9 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 45.56 | ||||
| 10 | C8990403 | Trim |
|
- | |||||
| 11 | D7580706 | Shelf, Frz |
|
- | |||||
| 12 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 6.95 | ||||
| 13 | D7599002 | Ladder, Center |
|
- | |||||
| 14 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 15 | D7620024 | Bin, Ice |
|
- | |||||
| 16 | D7620110 | Rack, Ice |
|
- | |||||
| 17 | 10043101 | Ext. Rear Glass |
|
- | |||||
| 18 | 10049908 | Trim, Shelf |
|
- | |||||
| 19 | C8913603 | Trim, Shelf Rear |
|
- | |||||
| 20 | 10036021 | Shelf, Glass |
|
- | |||||
| 21 | D7871003 | Frame, Cant. |
|
- | |||||
| 22 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 23 | A3263905 | Gasket-per Ft |
|
- | |||||
| 24 | D7859306 | Grommet M.k. |
|
- | |||||
| 25 | 10049913 | Trim, Shelf |
|
- | |||||
| 26 | 10036022 | Shelf M.k. Glass |
|
- | |||||
| 27 | 10200001 | Band, Crisper Control |
|
- | |||||
| 28 | D7698329 | Pan-meat |
|
- | |||||
| 29 | 10182507 | Frame-crisper |
|
- | |||||
| 29 | 10182508 | Frame-crisper |
|
- | |||||
| 30 | D7862905 | Blank Side Rail |
|
- | |||||
| 30 | D7862906 | Blank Side Rail |
|
- | |||||
| 31 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 32 | D7853302 | Frame M.k. V |
|
- | |||||
| 33 | 10199904 | Insert Crisper Slide |
|
- | |||||
| 34 | M0310314 | Plug |
|
- | |||||
| 35 | D7859401 | Slide-mk Control |
|
- | |||||
| 36 | WP12246608 | Plug, Button (blk) (Replaces: M0310727) |
|
Immediately | $ 7.76 | ||||
| 37 | M0230923 | Screw |
|
- | |||||
| 38 | D7698113 | Sleeve M.k. |
|
- | |||||
| 39 | B8362502 | Insul. Mk Plug |
|
- | |||||
| 40 | D7718402 | Seal Crisper |
|
- | |||||
| 41 | D7547614 | Rack, Bottle |
|
- | |||||
| 42 | M0219559 | Screw |
|
- | |||||
| 43 | D7806002 | Divider, Wire |
|
- | |||||
| 44 | D7599105 | Ladder, Side |
|
- | |||||
| 45 | 10250501 | Rack-freezer |
|
- | |||||
| 46 | 10036016 | Glass Crisper Top Gg |
|
- | |||||
| 47 | 10349904 | Shim, Crisper Support |
|
- | |||||
| 47 | 10349903 | Shim, Crisper Support |
|
- | |||||
| 48 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.82 | ||||
| NI | 10259612 | L Crisper Frame Assy |
|
- | |||||
| NI | 10259613 | Crisper Frame Assembly, Right |
|
- | |||||
| NI | 10144006 | Glass Shelf Assy |
|
- | |||||
| NI | 10144004 | Glass Shelf Assy |
|
- |
