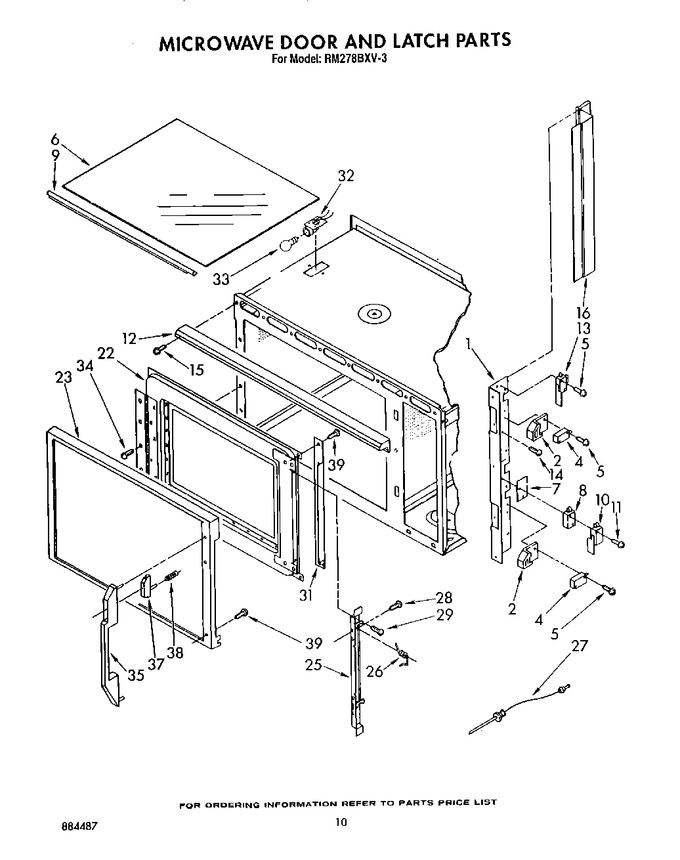

RM278BXV3 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	311354	Bracket, Catch Includes 3, No.19	Appelez-nous	-
2	311795	Catch (2)	Appelez-nous	-
4	814037	Switch, Primary Interlock (Replaces: 661146)			$ 94.88
4	814037	(alt.) (Replaces: 313077)			$ 94.88
4	814037	(alt.) (Replaces: 313125)			$ 94.88
5	312717	Screw 4-40x3/4 (8)	Appelez-nous	-
6	313639	Shelf, Glass	Appelez-nous	-
7	313126	Insulator	Appelez-nous	-
8	313123	(alt.)	Appelez-nous	-
8	313075	(alt.)	Appelez-nous	-
8	661144	Switch, Monitor/ Oven Light	Appelez-nous	-
9	313615	Trim, Shelf (rear)	Appelez-nous	-
9	313614	Trim, Shelf (front)	Appelez-nous	-
10	313124	(alt.)	Appelez-nous	-
10	313076	(alt.)	Appelez-nous	-
10	661145	Switch, Monitor/ Oven Light	Appelez-nous	-
11	310211	Screw, 4-40 X 1 (2)	Appelez-nous	-
12	3149297	Grille, Air	Appelez-nous	-
12	3150025	Screw (3)	Appelez-nous	-
13	313120	Switch, Electronic	Appelez-nous	-
14	309080	Screw 8-32 X 3/8	Appelez-nous	-
15	3149443	Screw, 6-20 X 1/2 (3)	Appelez-nous	-
16	311360	Shield	Appelez-nous	-
22	3171012	Door, Inner	Appelez-nous	-
23	3170441	Frame, Door	Appelez-nous	-
25	329066	Latch, Complete (includes No.26)	Appelez-nous	-
26	311352	Spring, Torsion (2)	Appelez-nous	-
27	313527	Probe, Temperature	Appelez-nous	-
28	303776	Screw, 8-32 X 5/16 (2) (Replaces: 313811)	Appelez-nous	-
29	313820	Screw (2)	Appelez-nous	-
31	3148297	End Cap	Appelez-nous	-
32	330514	Socket, Light	Appelez-nous	-
33	WP3395618	Bulb, Light (Replaces: 313969)		Immediately	$ 83.21
34	312713	Screw (2)	Appelez-nous	-
35	314169	Handle, Door	Appelez-nous	-
37	313611	Button, Door Handle (Replaces: 314168)			$ 41.59
38	310197	Spring, Compression	Appelez-nous	-
39	313818	Screw (6)	Appelez-nous	-
