SELECT A DIAGRAM

02 - Oven, Lit/optional


03 - Oven Door


04 - Control Panel


05 - Magnetron And Air Flow


06 - Stirrer Drive


07 - Microwave Door And Latch

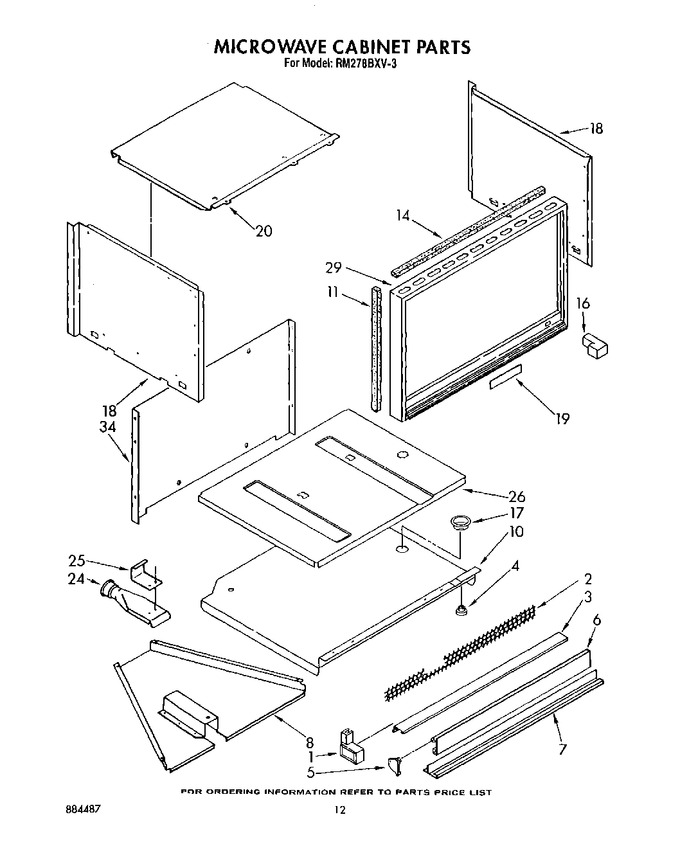

08 - Microwave Cabinet, Optional


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148928		End Cap, L.h.		Appelez-nous	-
1	342043		Screw (2)		Appelez-nous	-
1	3148929		End Cap, R.h.		Appelez-nous	-
2	312432		Trim, Oven Vent		Appelez-nous	-
3	342043		Screw (2)		Appelez-nous	-
3	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
3	3148678		Trim, Top		Appelez-nous	-
4	3147647		Bushing, Snap		Appelez-nous	-
5	3148698		End Trim, Vent Door R.h.		Appelez-nous	-
5	3148697		End Trim, Vent Door L.h.		Appelez-nous	-
6	3148617		Door, Vent		Appelez-nous	-
7	342043		Screw (2)		Appelez-nous	-
7	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 11.87
7	3148618		Trim, Bottom		Appelez-nous	-
8	3170178		Box Air		Appelez-nous	-
8	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 8.28
10	WP488729		Screw, 8-18 X 1/2 (7)   (Replaces: 3148107)			Immediately	$ 8.28
10	3147494		Support Plate		Appelez-nous	-
11	3147595		Seal, Foam (2)		Appelez-nous	-
14	3147590		Seal, Foam (2)		Appelez-nous	-
16	312713		Screw (2)		Appelez-nous	-
16	3147750		Seal, Foam (2)		Appelez-nous	-
17	3147647		Bushing, Snap		Appelez-nous	-
18	3147492		Side Panel, R.h.		Appelez-nous	-
18	3147493		Side Panel, L.h.		Appelez-nous	-
19	312330		Adhesive		Appelez-nous	-
20	WP488729		Screw (8)   (Replaces: 3148107)			Immediately	$ 8.28
20	3147497		Panel, Top		Appelez-nous	-
24	312696		Vent Tube		Appelez-nous	-
25	WP488729		Screw, 8-18 X 1/2   (Replaces: 313638)			Immediately	$ 8.28
25	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
25	312698		Support, Vent Tube		Appelez-nous	-
26	WP488729		Screw (8)   (Replaces: 3148107)			Immediately	$ 8.28
26	3147498		Panel, Support		Appelez-nous	-
29	307748		Screw (2)		Appelez-nous	-
29	3149800		Frame, Outer		Appelez-nous	-
34	832985		Rack, Cooking (bi-level)		Appelez-nous	-
34	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
34	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
34	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
34	786032		Ebony (microwave)		Appelez-nous	-
34	978849		Cleaner, (8oz.) Black Glass				$ 15.82
34	261582		Grease		Appelez-nous	-
34	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 51.81
34	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
34	W10841140		Sealer, Silastic (3 Oz.)   (Replaces: 307576)			Immediately	$ 27.69
34	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
34	261881		Rotisserie Kit (rck 79)		Appelez-nous	-
34	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
34	3147491		Cover, Rear		Appelez-nous	-
34	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
34	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
34	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
34	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
34	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
34	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
34	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
34	242826		18 Ga. 80~c Rating (white)		Appelez-nous	-
34	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
34	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
34	282831		18 Ga. 80~c Rating (red)		Appelez-nous	-
34	242832		18 Ga. 80~c Rating (yellow 12 Ga. 150~c Rating)		Appelez-nous	-
34	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
34	242829		18 Ga. 80~c Rating (red)		Appelez-nous	-
34	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
34	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
34	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
34	WP261869		Citrine White (microwave Liner) Paint, Touch Up 1 Oz. (oven Liner)   (Replaces: 261869)				$ 27.83
34	242860		Blue Gray		Appelez-nous	-
34	242757		Paint, Touch-up 1 Oz. (oven Liner) (light Gray)		Appelez-nous	-
34	8212471		Bronzetone   (Replaces: 242756)			Immediately	$ 87.22
34	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
34	261890		Harvest Gold		Appelez-nous	-
34	285365		Toast		Appelez-nous	-
34	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
34	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
34	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 59.89
34	350942		Primer				$ 94.14
34	350941		Leveler (primer)		Appelez-nous	-
34	261900		Citrine White 5 Oz. (m/w Liner)				$ 59.89
34	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
34	978883		Almond		Appelez-nous	-
34	261891		Harvest Gold		Appelez-nous	-
34	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
34	285368		Platinum		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
