Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3147939 Wiring Harness (main, Oven) Appelez-nous -
2 3147916 Wiring Harness (sel./therm.) Appelez-nous -
3 3147832 Adapter, Terminal Appelez-nous -
4 WP308605 Strain, Relief   (Replaces: 308605) Special Order $ 11.76

5 3147560 Wiring Harness (control) Appelez-nous -
6 3147554 Wiring Harness Main (microwave) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

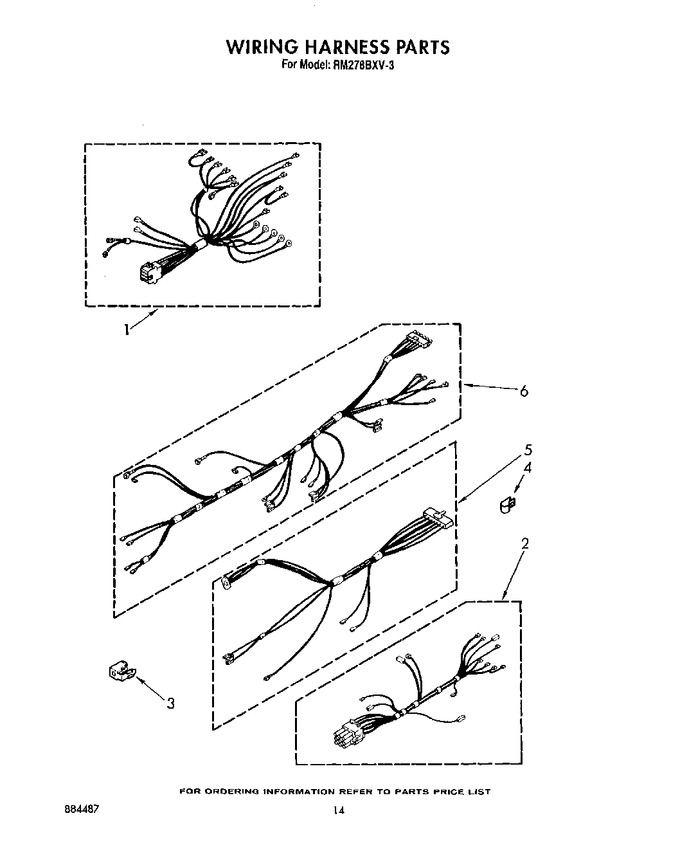

Diagram for RM278BXV3
