Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 10925609L Assy, Fz Dr Fm (alm) Appelez-nous -
15 10925401L Assy Ref Dr Fm Appelez-nous -
21 12325503 Handle, L Frz Appelez-nous -
22 M0219730 Screw Special Order $ 7.65

24 12325504 Handle, L Ref Appelez-nous -
25 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

31 10907404 Cap-l Fz Hndl Appelez-nous -
34 10907403 Cap-l Ref Hndl Appelez-nous -
35 M0219730 Screw Special Order $ 7.65

41 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

42 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
44 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

51 M0221744 Screw-sm Shldr Appelez-nous -
52 10447107 Stop-l Door Appelez-nous -
54 M0221744 Screw-sm Shldr Appelez-nous -
62 10456834 Gasket,fz Dr(white) Appelez-nous -
63 10961001 Bushing, Door (wht) Appelez-nous -
65 10447107 Stop-l Door Appelez-nous -
66 10961001 Bushing, Door (wht) Appelez-nous -
71 10926601 Nameplate, Handle Appelez-nous -
72 10415501 Liner, Frz Dr Appelez-nous -
81 10992118 Insert, Nameplate Appelez-nous -
84 10183114 Retainer, Ref Door Appelez-nous -
85 10419007 Retainer, Ref Door Appelez-nous -
92 M0310730 Plug Button (almond) Appelez-nous -
94 10502906 Bucket, Ref Door Appelez-nous -
95 WP12550111Q Gasket,ref Dr(white)   (Replaces: 10456833) Special Order $ 178.50

101 10419007 Retainer, Ref Door Appelez-nous -
102 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

104 10423416 Door,dairy Appelez-nous -
113 M0310338 Plug Button Almond Appelez-nous -
114 10416906 Use 10416911 Appelez-nous -
125 10440804 Liner, Ref Door Appelez-nous -
126 M0310338 Plug Button Almond Appelez-nous -
131 12044401 Clip-door Cap Appelez-nous -
132 10202001 Clip, Retainer Appelez-nous -
134 12044401 Clip-door Cap Appelez-nous -
141 10913502 Cap-l Dr Handle Appelez-nous -
144 10913502 Cap-l Dr Handle Appelez-nous -
195 M0310730 Plug Button (almond) Appelez-nous -
215 10202001 Clip, Retainer Appelez-nous -
253 12028601 Bushing, Door (wht) Appelez-nous -
263 10252903 Filter, Bushing Appelez-nous -
5003 10686402 Plug, Button Appelez-nous -
8006 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20


    View Diagram in Separate Window     Print Icon   Print Part List

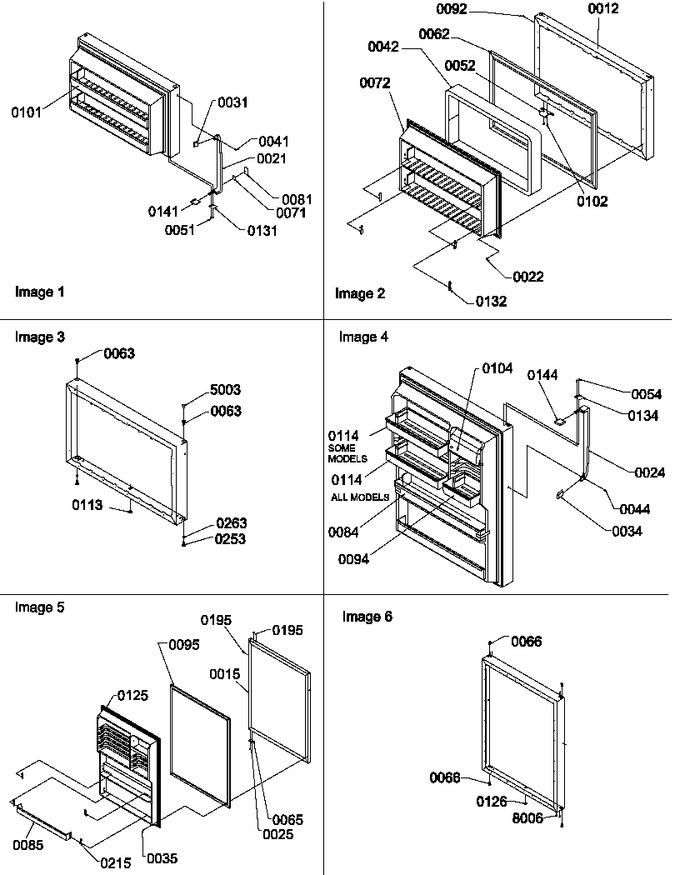

Diagram for TR21V2L (BOM: P1316001W L)
