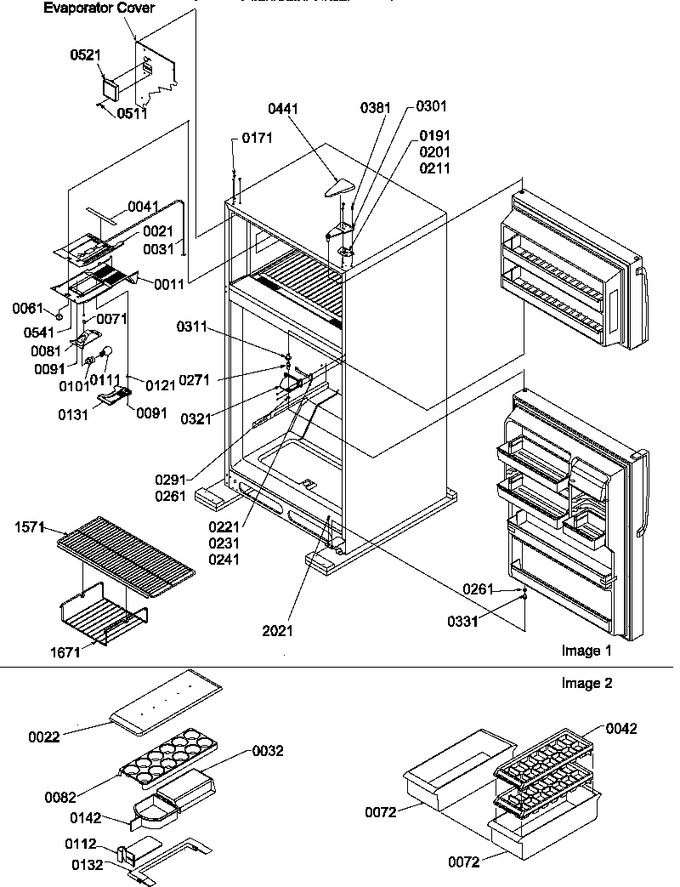

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10440403 | Duct, Frz Air |
|
- | |||||
| 21 | 10779601 | Insul. Air Duct |
|
- | |||||
| 22 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 31 | 12172502 | Harness, Cabinet |
|
- | |||||
| 32 | 10310901 | Tray, Butter |
|
- | |||||
| 41 | B8386613 | Gasket |
|
- | |||||
| 42 | WP841180A | Ice Tray (Replaces: D7725402) |
|
Immediately | $ 47.84 | ||||
| 61 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 71 | B5733302 | Clip, Ground |
|
- | |||||
| 72 | 10423129 | Bin-utility |
|
- | |||||
| 81 | C8730103 | Housing-light |
|
- | |||||
| 82 | 10436506 | Tray, Egg |
|
$ 8.28 | |||||
| 91 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 101 | D7714406 | Socket, Angle |
|
- | |||||
| 111 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 112 | 10467502 | Snugger, Door Shelf (shelf Div |
|
- | |||||
| 121 | M0580007 | Grommet, Screw |
|
- | |||||
| 131 | 10678401 | Shield, Frz Light |
|
- | |||||
| 132 | 10468004 | Retainer, Tall Pkg |
|
- | |||||
| 142 | 10441102 | Hugger, Bottle (shelf Divider) |
|
- | |||||
| 171 | M0310716 | Plug |
|
- | |||||
| 191 | 10448501 | Shim, Top Hinge |
|
- | |||||
| 201 | 10448502 | Shim, Top Hinge |
|
- | |||||
| 211 | 10448503 | Shim, Top Hinge |
|
- | |||||
| 221 | 10562201 | Shim, Center Hinge |
|
- | |||||
| 231 | 10562202 | Shim, Center Hinge |
|
- | |||||
| 241 | 10562203 | Shim, Center Hinge |
|
- | |||||
| 261 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) |
|
Immediately | $ 8.40 | ||||
| 271 | 10351002 | Pin, Hinge (ctr) |
|
- | |||||
| 291 | M0274058 | Shim, Non Metal (wht) |
|
$ 5.83 | |||||
| 301 | 5303918507 | Assy, Top Hinge (Replaces: 12077303) |
|
$ 956.29 | |||||
| 311 | 12028501 | Closure, Door (wht) |
|
$ 6.67 | |||||
| 321 | 10433412 | Hinge-ctr Chrome |
|
- | |||||
| 331 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 381 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 441 | 10444706 | Cover, Hinge (almond) |
|
- | |||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 521 | D7874403 | Cover-fl Tb/plug |
|
- | |||||
| 541 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1571 | Y10440002 | Shelf, Freezer Wire |
|
- | |||||
| 1671 | 10250502 | Rack, Freezer |
|
- |
