Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

13 10433804 Rail, Crisper Back Appelez-nous -
22 10895811 Assy, Shelf Hlf Gls Appelez-nous -
23 10467804 Band, Crisper Cont. Appelez-nous -
31 10920203 Extr, Mk Rear Appelez-nous -
32 10875101 Stop, Shelf Appelez-nous -
33 10797501 Slide, Crisper Appelez-nous -
41 10920303 Extrusion, Mk Frt Appelez-nous -
43 10432701 Rail, Side Crisper Appelez-nous -
51 10437304 Sleeve, Mk Appelez-nous -
53 10432702 Rail, Side Crisper Appelez-nous -
61 10895708 Shelf-sta Appelez-nous -
63 10432803 Rail, Ctr. Crisper Appelez-nous -
73 10432804 Rail, Ctr. Crisper Appelez-nous -
81 10445701 Scoop, Air V Appelez-nous -
83 10687801 Rail, R. Crisper Frt Appelez-nous -
91 10920401 Slide, Mk Control Appelez-nous -
93 10687802 Rail, L. Crisper Frt Appelez-nous -
101 10920101 Band, Mk Control Appelez-nous -
103 10435604 Rail, Crisper Back Appelez-nous -
111 10880201 Glide, Mk R Appelez-nous -
113 10481001 Roller, Pan Special Order $ 10.99

121 10897101 Glide, Mk L Appelez-nous -
131 10417013 Pan,meatkeeper Appelez-nous -
133 10370012 Shelf, Glass Special Order $ 86.24

171 10481001 Roller, Pan Special Order $ 10.99

173 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

183 10688055 Extr, R Crisp Front Appelez-nous -
191 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

193 10688054 Extr, L Crisp Front Appelez-nous -
203 10530204 Seal, Crisper Special Order $ 39.10

213 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79


    View Diagram in Separate Window     Print Icon   Print Part List

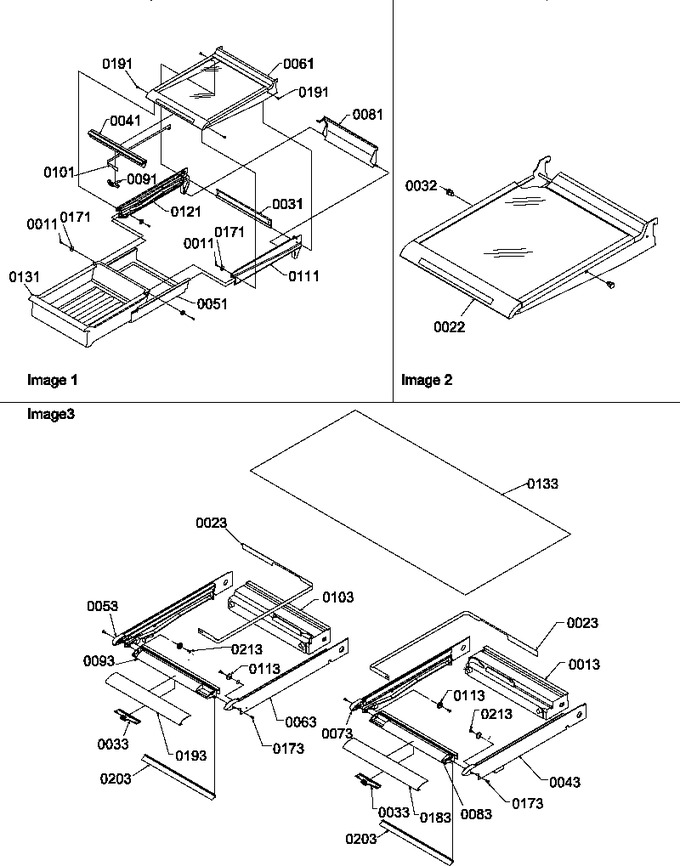

Diagram for TR21V2L (BOM: P1316001W L)
