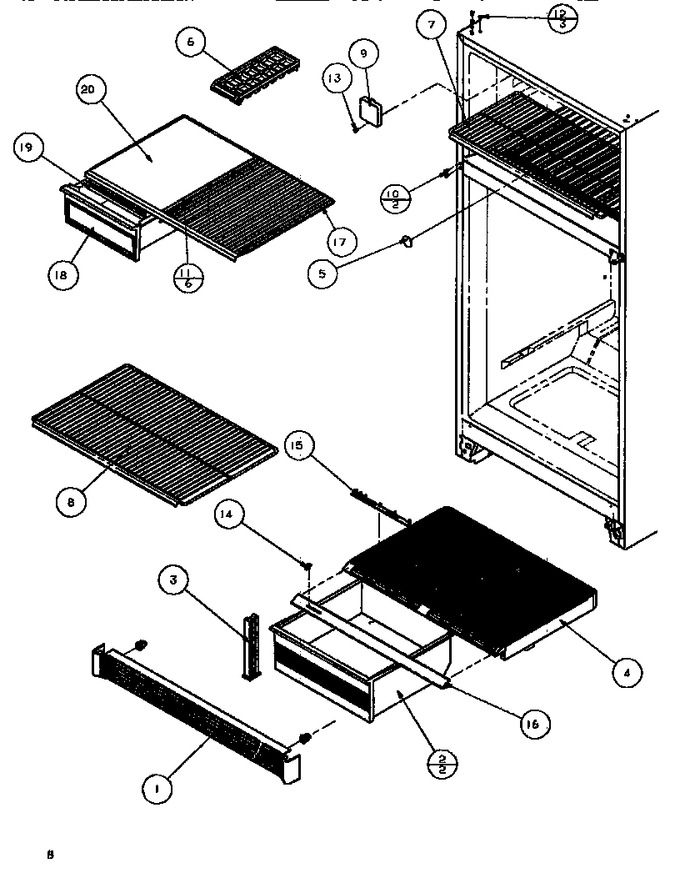

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520510 | Grille-toe-b K |
|
$ 44.22 | |||||
| 2 | D7581038 | Pan, Crisper |
|
- | |||||
| 3 | D7602203 | Crisper Support Post |
|
- | |||||
| 4 | D7616505 | Top,crisper A-k |
|
- | |||||
| 5 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 6 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 7 | D7580706 | Shelf, Frz |
|
- | |||||
| 8 | D7583805 | Shelf, Wire |
|
- | |||||
| 9 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 10 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 11 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 12 | M0310716 | Plug |
|
- | |||||
| 12 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 8.21 | ||||
| 13 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 14 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 15 | D7587705 | Slide Humidity |
|
- | |||||
| 16 | D7616684 | Trim |
|
- | |||||
| 17 | D7584205 | Shelf Wire Mk |
|
- | |||||
| 18 | D7710519 | Drawer-deli |
|
- | |||||
| 19 | D7718401 | Seal Meat Pan |
|
- | |||||
| 20 | D7698204 | Top M.k |
|
- | |||||
| NI | D7882009 | Crisper Top Assy |
|
- |
