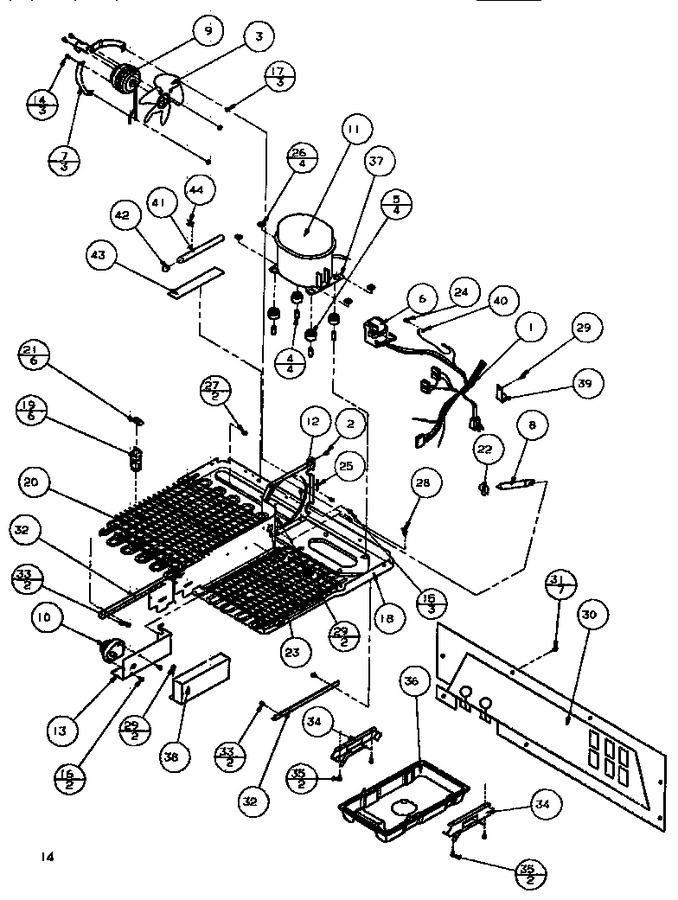

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7655002		Harness Mc Comp		Appelez-nous	-
2	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
3	B5742601		Blade, Fan		Appelez-nous	-
4	A3072001		Sleeve K		Appelez-nous	-
5	WPW10169124		Grommet   (Replaces: B8333401)				$ 7.55
6	C8867701		Term Cover K		Appelez-nous	-
7	C8982101		Bracket, Cond Motor		Appelez-nous	-
8	4007A		Drier   (Replaces: B2150502)			Immediately	$ 15.05
9	D7656601		Motor, Condenser		Appelez-nous	-
10	10129302		Kit, Defrost Timer		Appelez-nous	-
11	D7653601		Compressor		Appelez-nous	-
12	D7691002		Cond. Fan Shrd		Appelez-nous	-
13	D7752701		Bracket, Timer		Appelez-nous	-
14	M0223803		Screw		Appelez-nous	-
15	M0221332		Screw, Shoulder		Appelez-nous	-
16	M0218118		Screw		Appelez-nous	-
17	M0500107		Grommet K		Appelez-nous	-
18	D7595411		Base Pan - Ptd		Appelez-nous	-
19	B8346301		Spacer Cond.		Appelez-nous	-
20	D7654301		Condenser Pntd		Appelez-nous	-
21	M0293703		Speednut		Appelez-nous	-
22	M0104002		Clamp-drier		Appelez-nous	-
23	A9008301		Felt		Appelez-nous	-
24	M0251017		Screw		Appelez-nous	-
25	B5759604		Gasket		Appelez-nous	-
26	A3140801		Clip K		Appelez-nous	-
27	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
28	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
29	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
30	C8890206		Mc Back Assy		Appelez-nous	-
31	M0219704		Screw		Appelez-nous	-
32	C8913701		Support, Mc		Appelez-nous	-
33	M0217224		Screw		Appelez-nous	-
34	D7790502		Support, Drain Pan		Appelez-nous	-
35	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
36	D7790601		Drain Pan		Appelez-nous	-
37	C8962201		Bracket, Washer		Appelez-nous	-
38	C8964701		Cover, Timer		Appelez-nous	-
39	M0105509		Clamp		Appelez-nous	-
40	M0272803		Lock Washer		Appelez-nous	-
41	10421701		Capacitor		Appelez-nous	-
42	10421601		Cap, Capacitor		Appelez-nous	-
43	M0275178		Tape Double Back (roll)k		Appelez-nous	-
44	B5733302		Clip, Ground		Appelez-nous	-
NI	WP486692		Nut K   (Replaces: M0286113)				$ 8.43
NI	M0274015		Washer K		Appelez-nous	-
NI	B8364301		Ptc Device		Appelez-nous	-
