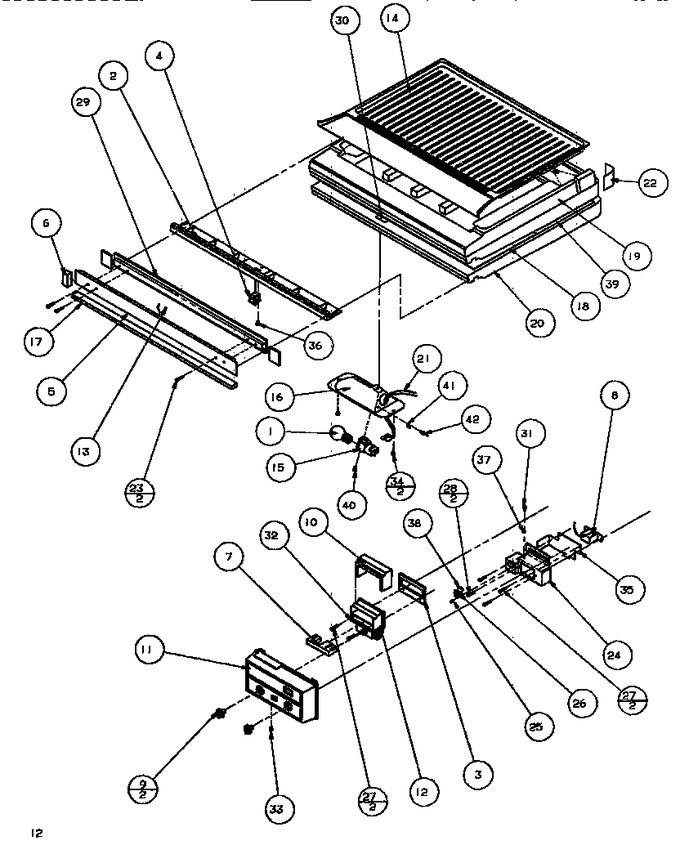

01 - Cabinet Back
02 - Cabinet Bottom & Back
03 - Cabinet Shelving
04 - Compressor
05 - Divider & Controls
06 - Evap Area
07 - Fz Door
08 - Ref Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11618980 | Lamp 40 Watt (Replaces: B8363301) |
|
$ 22.42 | |||||
| 2 | D7653004 | Breaker-top |
|
- | |||||
| 3 | B8345401 | Gasket, Damper |
|
- | |||||
| 4 | C8929703 | Light Switch K |
|
- | |||||
| 5 | C8842505 | Center Mullion, Almond |
|
- | |||||
| 5 | C8842517 | W.center Mullion - Pnt |
|
- | |||||
| 6 | B5759626 | Gasket, Sealing |
|
- | |||||
| 7 | C8902601 | Insert, Control |
|
- | |||||
| 8 | D7656101 | Control, Frz. Temp |
|
- | |||||
| 9 | D7661901 | Knob, Control |
|
- | |||||
| 10 | D7543201 | Insulation Damper |
|
- | |||||
| 11 | D7545027 | Cover Control |
|
- | |||||
| 12 | D7656202 | Assy, Damper-control |
|
- | |||||
| 13 | D7654506 | Heater-mullion |
|
- | |||||
| 14 | D7714704 | Bottom; Freezer |
|
- | |||||
| 15 | D7845102 | Socket, Lamp |
|
- | |||||
| 16 | D7861802 | Housing Light |
|
- | |||||
| 17 | B5759628 | Gasket K |
|
- | |||||
| 18 | C8887902 | Insulation |
|
- | |||||
| 19 | 10491901 | Block-drain |
|
- | |||||
| 20 | D7539308 | Top Ref. |
|
- | |||||
| 21 | 10399101 | Harness, Mullion |
|
- | |||||
| 22 | M0275117 | Tape Per Roll A |
|
- | |||||
| 23 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 24 | D7713802 | Bracket, Control |
|
- | |||||
| 25 | M0234003 | Screw |
|
- | |||||
| 26 | M0381903 | Switch, Heater |
|
- | |||||
| 27 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 28 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 8.25 | ||||
| 29 | 876370 | Insulation, Batt (Replaces: B0523561) |
|
$ 243.14 | |||||
| 30 | A0092404 | Pad-protective |
|
- | |||||
| 31 | M0251017 | Screw |
|
- | |||||
| 32 | A3263906 | Gasket-per Ft |
|
- | |||||
| 33 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 34 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 35 | C8948102 | Shield, Temp. Cont. |
|
- | |||||
| 36 | M0210217 | Screw, No.8-18 X 3/8 P Trs Hd Lp |
|
- | |||||
| 37 | M0272803 | Lock Washer |
|
- | |||||
| 38 | M0305301 | Diode |
|
- | |||||
| 39 | 10463501 | Heater, Refrig Top |
|
- | |||||
| 40 | M0217225 | Screw |
|
- | |||||
| 41 | M0320905 | Terminal Ground A |
|
- | |||||
| 42 | A4539626 | Pop Rivet |
|
- |
