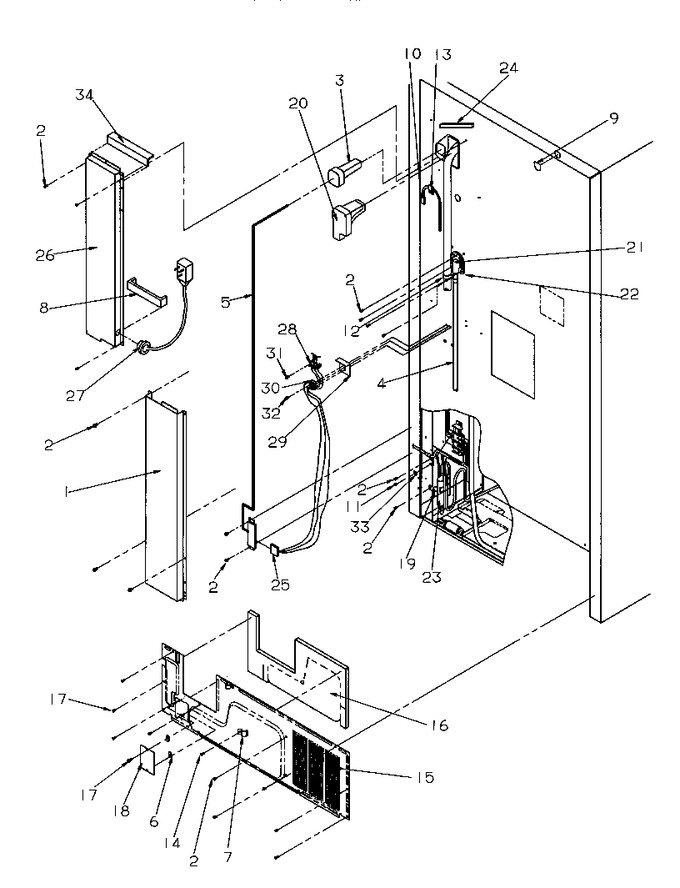

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10442202 | Cover, Heat Exch. |
|
- | |||||
| 2 | M0227217 | Screw, Sm |
|
- | |||||
| 3 | 10699301 | Grommet |
|
- | |||||
| 4 | 10442502 | Tube, Drain |
|
- | |||||
| 5 | 10784902 | Harness, Cabinet |
|
- | |||||
| 7 | 10547101 | Clip, Tube |
|
- | |||||
| 8 | B5759642 | Gasket |
|
- | |||||
| 9 | 10544301 | Plug, Im Tunnel |
|
- | |||||
| 10 | B5669009 | Cord, Power |
|
- | |||||
| 11 | M0232317 | Screw |
|
- | |||||
| 12 | B8372901 | Clamp |
|
- | |||||
| 13 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 8.17 | |||||
| 14 | M0227217 | Screw, Sm |
|
- | |||||
| 15 | 10467926 | Back, Mc |
|
- | |||||
| 16 | 10987511 | Insul, Mach Back |
|
- | |||||
| 17 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 18 | 10541403 | Cover, Water Valve |
|
- | |||||
| 19 | 10547001 | Clip, Drier |
|
- | |||||
| 20 | 10428001 | Plug, Ht Exch V |
|
- | |||||
| 21 | 10163201 | Elbow Drain Tube |
|
- | |||||
| 22 | A3132301 | Gasket |
|
- | |||||
| 23 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 136.98 | |||||
| 24 | B5759643 | Gasket |
|
- | |||||
| 25 | 10789301 | Jumper-power |
|
- | |||||
| 26 | 10442203 | Ht Ex Cover-e Ct |
|
- | |||||
| 27 | A4554813 | Snap Bushing |
|
- | |||||
| 28 | Y10203701 | Strain Relief |
|
- | |||||
| 29 | 10377603 | Insul, Term Block |
|
- | |||||
| 30 | C8969202 | Terminal Block |
|
- | |||||
| 31 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 32 | M0219758 | Screw |
|
- | |||||
| 33 | M0272803 | Lock Washer |
|
- | |||||
| 34 | 10913801 | Gskt, Ht Ex Cov |
|
- |
