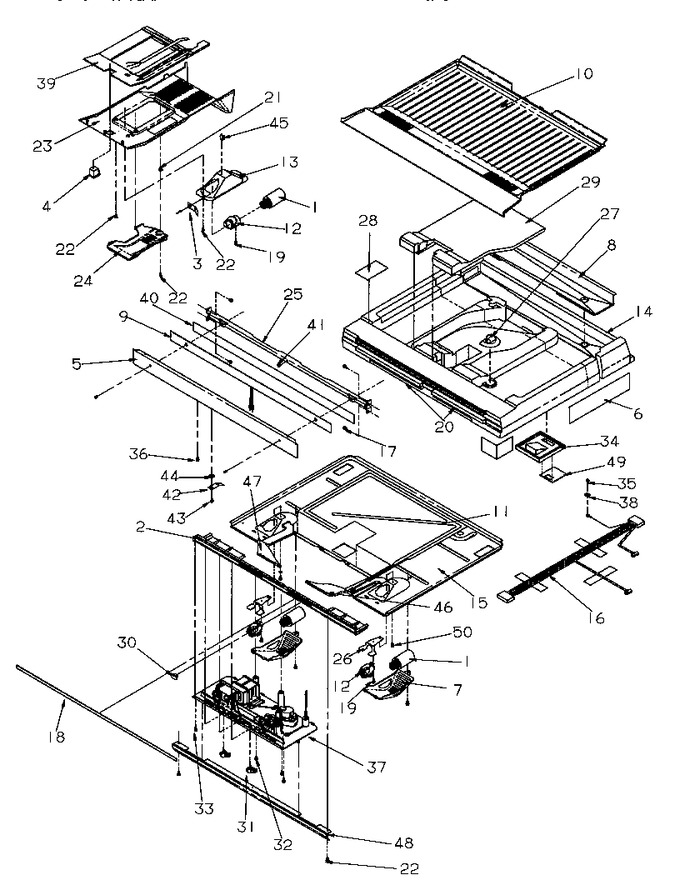

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 2 | 10435514 | Frame, Ref Top Brk |
|
- | |||||
| 3 | M0320905 | Terminal Ground A |
|
- | |||||
| 4 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 39.09 | ||||
| 5 | 10433347 | Mullion, Center (white) |
|
- | |||||
| 6 | 10685502 | Gasket, Sealing |
|
- | |||||
| 7 | 10508701 | Shield, Refrig. Light |
|
- | |||||
| 8 | 10435913 | Tray, Drip |
|
- | |||||
| 9 | 10543609 | Heater-mullion |
|
- | |||||
| 10 | 10995002 | Freezer Bottom |
|
- | |||||
| 11 | 10775302 | Heater, Ref Top |
|
- | |||||
| 12 | D7845103 | Socket, Light |
|
- | |||||
| 13 | D7861803 | Housing-light |
|
- | |||||
| 14 | 10996101 | Block-drain |
|
- | |||||
| 15 | 12035210 | Ref Top- E Ct |
|
- | |||||
| 16 | 10781101 | Harness, Mullion |
|
- | |||||
| 17 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 18 | 10450834 | Membrane, Breaker |
|
- | |||||
| 19 | M0223328 | Screw |
|
- | |||||
| 20 | 10772301 | Insulation |
|
- | |||||
| 21 | M0580007 | Grommet, Screw |
|
- | |||||
| 22 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 23 | 10440403 | Duct, Frz Air |
|
- | |||||
| 24 | 10678401 | Shield, Frz Light |
|
- | |||||
| 25 | 10433611 | Plate, Center Tap |
|
- | |||||
| 26 | 10907501 | Brkt, Light |
|
- | |||||
| 27 | 10993701 | Cap-air |
|
- | |||||
| 28 | B5759626 | Gasket, Sealing |
|
- | |||||
| 29 | 10476401 | Insert-drain Blk |
|
- | |||||
| 30 | 10752201 | Cap-switch |
|
- | |||||
| 31 | 10565401 | Knob, Control |
|
- | |||||
| 32 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 33 | M0224128 | Screw |
|
- | |||||
| 34 | 10995201 | Insert-mk Air Sply |
|
- | |||||
| 35 | M0232330 | Screw, Spextite |
|
- | |||||
| 36 | M0211520 | Screw - Sm |
|
- | |||||
| 38 | M0272803 | Lock Washer |
|
- | |||||
| 39 | 10779601 | Insul. Air Duct |
|
- | |||||
| 40 | B0523584 | Insulation Per Ft. |
|
- | |||||
| 41 | M0232330 | Screw, Spextite |
|
- | |||||
| 42 | M0320901 | Terminal |
|
- | |||||
| 43 | A4539626 | Pop Rivet |
|
- | |||||
| 44 | M0272803 | Lock Washer |
|
- | |||||
| 45 | B5733302 | Clip, Ground |
|
- | |||||
| 46 | 10467701 | Pipe, Light |
|
- | |||||
| 47 | 10467702 | Pipe, Light |
|
- | |||||
| 48 | 10645602 | Extrusion, Rear Light |
|
- | |||||
| 49 | 10594901 | Gasket, Mk Air Supply |
|
- | |||||
| 50 | WP489128 | Screw (Replaces: M0253516) |
|
$ 11.40 |
