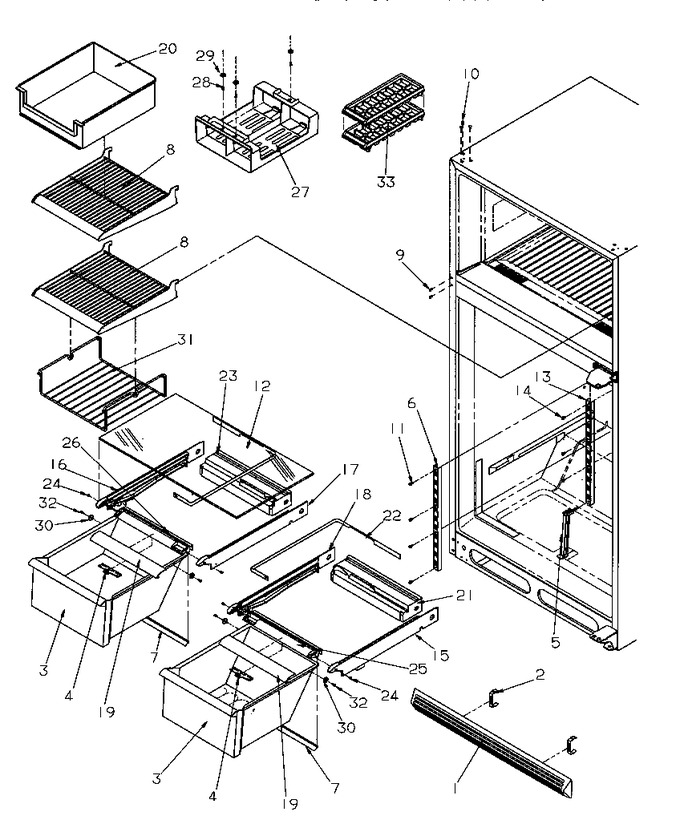

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474802 | Grille, Toe (white) |
|
$ 44.88 | |||||
| 2 | 10551502 | Clip, Toe Grille |
|
$ 5.84 | |||||
| 3 | Y10430111 | Pan-crisper |
|
- | |||||
| 4 | 10797501 | Slide, Crisper |
|
- | |||||
| 5 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 6 | D7599002 | Ladder, Center |
|
- | |||||
| 7 | 10530201 | Seal, Crisper |
|
- | |||||
| 8 | 10923701 | Shelf, Wire Frz |
|
- | |||||
| 9 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 8.21 | ||||
| 10 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 8.21 | ||||
| 11 | M0230923 | Screw |
|
- | |||||
| 12 | 10370012 | Shelf, Glass |
|
$ 86.24 | |||||
| 13 | D7599105 | Ladder, Side |
|
- | |||||
| 14 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 15 | 10432701 | Rail, Side Crisper |
|
- | |||||
| 16 | 10432702 | Rail, Side Crisper |
|
- | |||||
| 17 | 10432803 | Rail, Ctr. Crisper |
|
- | |||||
| 18 | 10432804 | Rail, Ctr. Crisper |
|
- | |||||
| 19 | 10688041 | Extr, R Crisp Fr |
|
- | |||||
| 19 | 10688040 | Extr, L Crisp Fr |
|
- | |||||
| 20 | D7806201 | Pan, Ice |
|
- | |||||
| 21 | 10433804 | Rail, Crisper Back |
|
- | |||||
| 22 | 10467804 | Band, Crisper Cont. |
|
- | |||||
| 23 | 10435604 | Rail, Crisper Back |
|
- | |||||
| 24 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 25 | 10687801 | Rail, R. Crisper Frt |
|
- | |||||
| 26 | 10687802 | Rail, L. Crisper Frt |
|
- | |||||
| 27 | 10423001 | Rack, Ice Service |
|
- | |||||
| 28 | M0219523 | Screw |
|
- | |||||
| 29 | M0270508 | Washer |
|
- | |||||
| 30 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 31 | 10250502 | Rack, Freezer |
|
- | |||||
| 32 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| NI | 10698524 | Assy, Crisp Frame (export) |
|
- |
