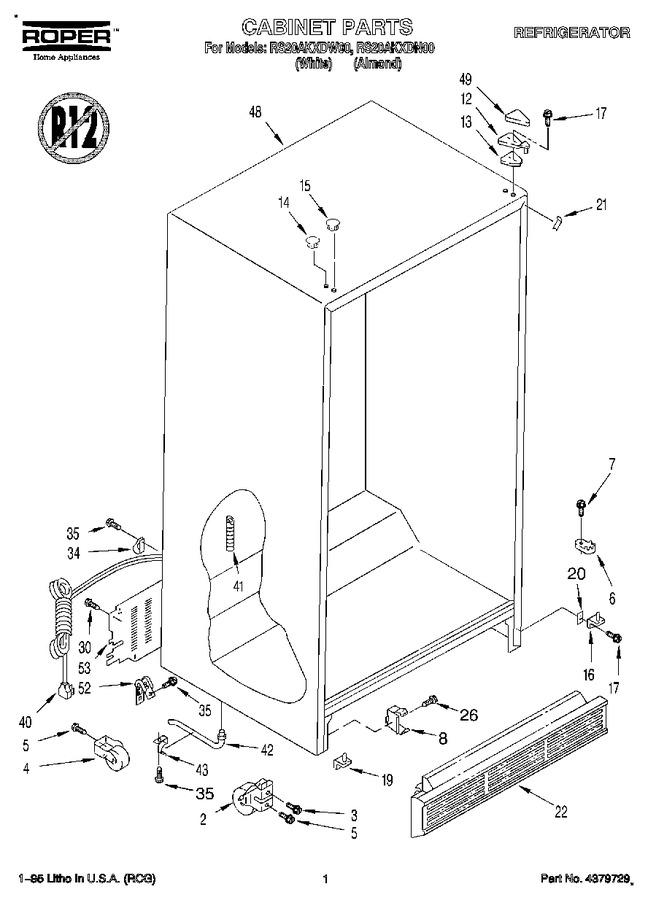

01 - Cabinet
02 - Refrigerator Liner
03 - Freezer Liner
04 - Air Flow
05 - Refrigerator Door
06 - Freezer Door
07 - Unit
08 - Control, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | 489432 | Screw |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 7 | 489240 | Screw |
|
- | |||||
| 8 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 12 | 2155449 | Hinge, Top (2) |
|
- | |||||
| 13 | 1123515 | Shim, Hinge (2) |
|
$ 6.58 | |||||
| 14 | 989958 | Hole Plug (almond) |
|
- | |||||
| 14 | 849391 | Hole, Plug (white) |
|
- | |||||
| 15 | 1115354 | Hole Plug (almond) |
|
- | |||||
| 15 | 1115352 | Hole Plug (white) |
|
- | |||||
| 16 | 2155321 | Hinge Bottom (r.h.) |
|
- | |||||
| 17 | WP999367 | Screw (Replaces: 489367) |
|
$ 8.56 | |||||
| 19 | 2155323 | Hinge Bottom (l.h.) |
|
- | |||||
| 20 | 836196 | Spacer, Hinge |
|
- | |||||
| 21 | 1110709 | Filler, Wrapper (almond) |
|
- | |||||
| 21 | 1110708 | Filler, Wrapper (white) |
|
- | |||||
| 22 | 2155477 | Grille (white) |
|
- | |||||
| 22 | 2155478 | Grille (almond) |
|
- | |||||
| 26 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 30 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 34 | WP488366 | Clamp (Replaces: 489385) |
|
$ 11.92 | |||||
| 35 | WP489464 | Screw (Replaces: 489337) |
|
Immediately | $ 8.38 | ||||
| 40 | 937360 | Cord, Service |
|
- | |||||
| 41 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 53.45 | ||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 32.90 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 | |||||
| 48 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 49 | 842010 | Hinge Cover (2) (white) |
|
- | |||||
| 49 | 989194 | Hinge Cover (2) (almond) |
|
- | |||||
| 52 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 53 | WP2188756 | Cover, Unit (Replaces: 2171936) |
|
$ 148.75 |
