01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Control, Lit/optional

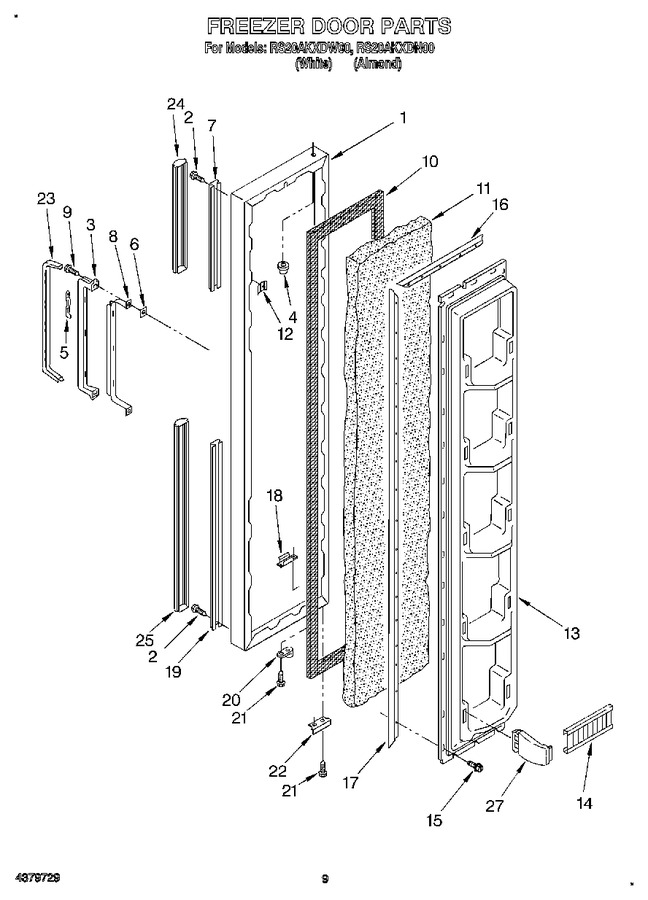

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362037		Freezer, Door Panel (almond (also Order Item 11))		Appelez-nous	-
1	4362036		Freezer, Door Panel (white)		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489242)				$ 7.75
3	2147470		Handle (white)		Appelez-nous	-
3	2170066		Handle (almond)		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	849445		Handle, Reinforcement		Appelez-nous	-
6	2147097		Shim, Handle (2)		Appelez-nous	-
7	2147898		Retainer, Top		Appelez-nous	-
8	1127465		Reinforcement, Handle		Appelez-nous	-
9	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 351.08
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
13	1129241		Panel, Interior Door		Appelez-nous	-
14	2163642		Trim, Shelf (5)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
16	1117767		Retainer, Gasket		Appelez-nous	-
17	1117766		Retainer, Gasket				$ 36.55
18	2155335		Tap, Plate		Appelez-nous	-
19	2147896		Retainer (bottom)		Appelez-nous	-
20	4318165		Cam, Door Closer   (Replaces: 2155312)			Immediately	$ 27.36
21	WP999367		Screw   (Replaces: 489367)				$ 7.86
22	2155332		Bracket, Door Stop		Appelez-nous	-
23	2147581		Insert, Handle		Appelez-nous	-
24	2147472		Insert, Top (white)		Appelez-nous	-
24	2170067		Insert, Top (almond)		Appelez-nous	-
25	2147471		Insert, Bottom (white)		Appelez-nous	-
25	2170068		Insert, Bottom (almond)		Appelez-nous	-
27	WP2196100		End Cap, Trim   (Replaces: 1110719)			Immediately	$ 8.66
