01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Control, Lit/optional

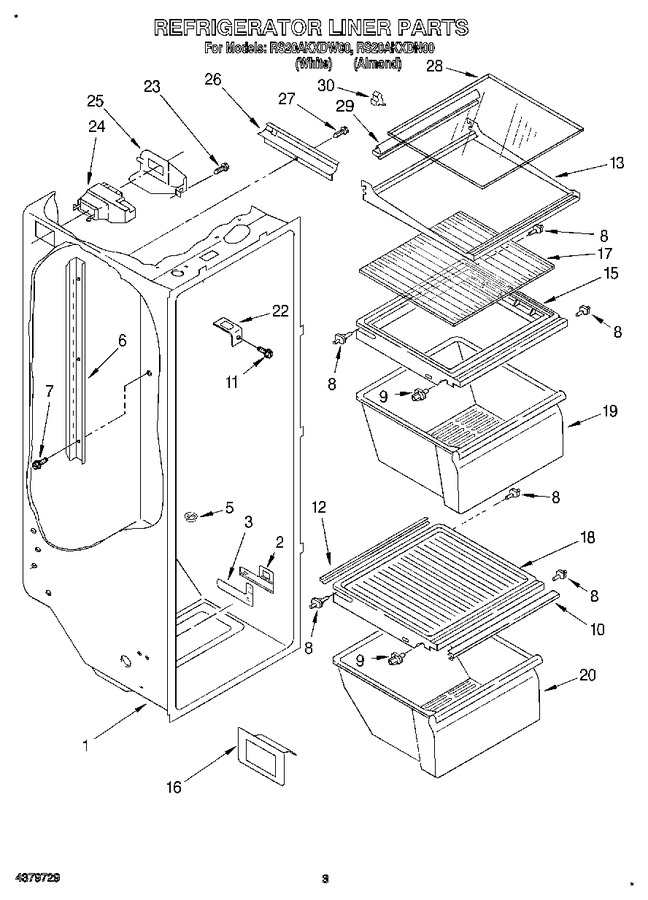

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control   (Replaces: 2179918)				$ 91.28
3	2161489		Slide, Meat Pan Control		Appelez-nous	-
5	2171846		Release Valve				$ 18.99
6	1108433		Ladder, Shelf (2)		Appelez-nous	-
7	WP488729		Screw (6)   (Replaces: 487539)			Immediately	$ 7.79
8	4388538		Stud (8)   (Replaces: 1110718)			Immediately	$ 31.34
9	4388539		Stud, Left Front   (Replaces: 2172943)				$ 17.54
10	2174442		Gasket, Front		Appelez-nous	-
11	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
12	2174483		Gasket, Rear		Appelez-nous	-
13	2173178		Shelf, Cantilever		Appelez-nous	-
15	W10508993		Crisper Cover   (Replaces: 2173394)				$ 291.29
16	2179350		Deflector				$ 81.80
17	W10864399		Glass, Crisper   (Replaces: 2173405)				$ 220.98
18	W10508993		Cover, Meat Pan   (Replaces: 2173398)				$ 291.29
19	WP2188656		Pan, Crisper   (Replaces: 2173384)				$ 136.40
20	WP2188664		Pan, Meat   (Replaces: 2173385)			Immediately	$ 85.30
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 34.38
23	WP489478		Screw   (Replaces: 489242)				$ 7.75
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2176173)			Immediately	$ 99.78
25	2152019		Cover, Air Diffuser				$ 86.03
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw   (Replaces: 486298)				$ 7.75
28	2173179		Glass, Shelf		Appelez-nous	-
29	1125594		Reflector		Appelez-nous	-
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
