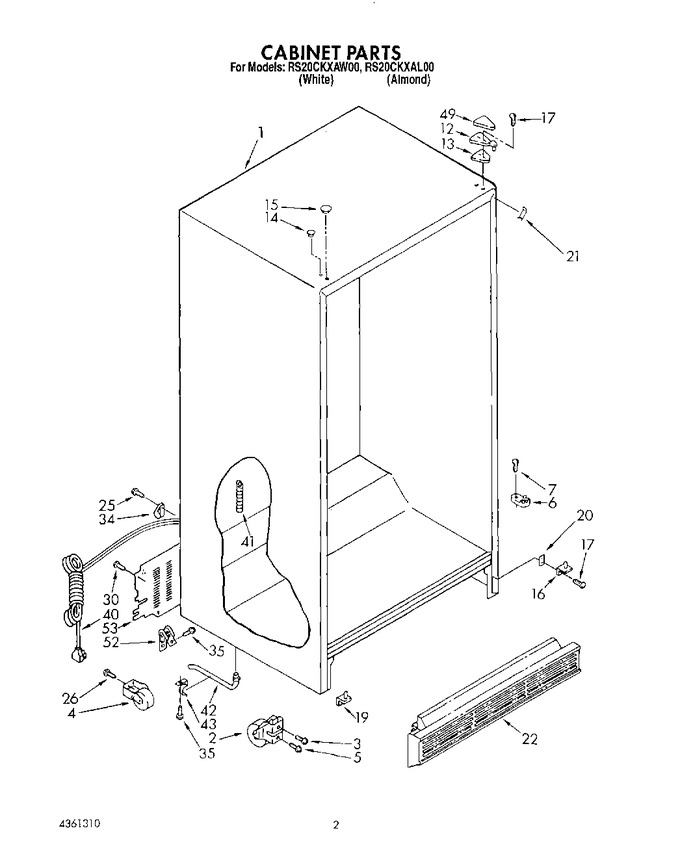

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Air Flow


08 - Control


09 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Front Roller (2)		Appelez-nous	-
3	489393		Screw		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	WP489427		Screw   (Replaces: 489339)				$ 7.84
6	WPW10329686		Door Closer Lower Cam (2)   (Replaces: 1115901)			Immediately	$ 5.90
7	WP489399		Screw   (Replaces: 489375)				$ 7.30
12	1123514		Hinge, Top (2)		Appelez-nous	-
13	1123515		Shim, Hinge (2)				$ 6.58
14	849391		Hole, Plug (white)		Appelez-nous	-
14	989958		Hole Plug (almond)		Appelez-nous	-
15	1115352		Hole Plug (white)		Appelez-nous	-
15	1115354		Hole Plug (almond)		Appelez-nous	-
16	2151619		Hinge Bottom (r.h.)		Appelez-nous	-
17	489327		Screw, 10-32 X 23/32		Appelez-nous	-
19	2151620		Hinge Bottom (l.h.)		Appelez-nous	-
20	836196		Spacer, Hinge		Appelez-nous	-
21	1110708		Filler, Wrapper (white)		Appelez-nous	-
21	1110709		Filler, Wrapper (almond)		Appelez-nous	-
22	1129001		Grille		Appelez-nous	-
25	WP489478		Screw   (Replaces: 489242)				$ 8.18
26	488454		Screw,		Appelez-nous	-
30	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
34	WP488366		Clamp   (Replaces: 489385)				$ 11.92
35	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
40	937360		Cord, Service		Appelez-nous	-
41	2155556		Drain Ferrule		Appelez-nous	-
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
49	989194		Hinge Cover (2) (almond)		Appelez-nous	-
49	842010		Hinge Cover (2) (white)		Appelez-nous	-
52	549193		Clamp-service Cord				$ 14.06
53	2161316		Cover, Unit		Appelez-nous	-
