SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Air Flow


08 - Control


09 - Unit, Lit/optional

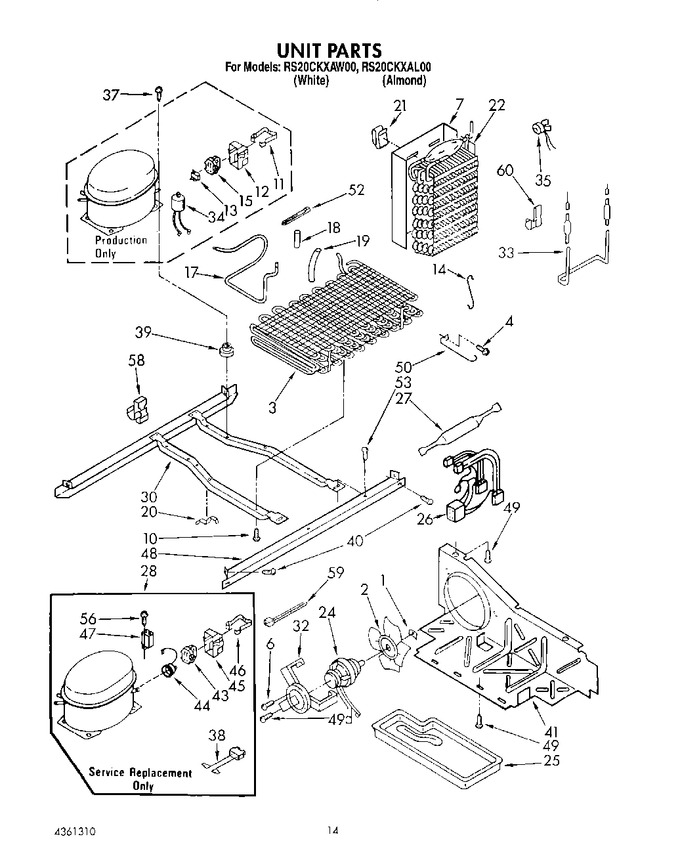

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489478		Screw   (Replaces: 489242)				$ 8.18
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	2149293		Heat Sheild, Drain Pan		Appelez-nous	-
10	WP489464		Screw, 8 X 1/2 (4)   (Replaces: 489337)			Immediately	$ 8.38
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	WP2149959		Overload   (Replaces: 2149959)				$ 140.06
14	2161329		Clip, Defrost Heater		Appelez-nous	-
15	2154436		Relay				$ 141.69
17	2205764		Tube, Suction   (Replaces: 2155649)				$ 89.18
18	WP2158826		Dampener (3)   (Replaces: 2158826)				$ 1.82
19	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	2155547		Clip, Heat Shield		Appelez-nous	-
22	WP2188822		Evaporator   (Replaces: 2155500)			Immediately	$ 356.84
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2153994		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	W10439652		Compressor (includes Items 38, 43, 44, 45, 46, 47 & 56) (also Order)   (Replaces: 4317961)				$ 442.20
28	876765		Tube Kit			Immediately	$ 90.65
30	1127942		Unit Mounting Frame		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162079		Heater, Defrost		Appelez-nous	-
34	WPW10662129		Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 8.51
39	2162067		Grommet (4)		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	1127938		Air, Baffle		Appelez-nous	-
44	1108114		Overload		Appelez-nous	-
45	1108115		Cover		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	WPW10662129		Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
52	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
56	W11693756		Screw   (Replaces: 487240)			Immediately	$ 14.76
58	2155658		Clip, Wire And Water Tube		Appelez-nous	-
59	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 8.30
60	833938		Kit, Terminal Connector				$ 8.47
60	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
60	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
60	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
60	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
60	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
60	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
60	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
60	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
60	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
60	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
60	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
60	2161330		Clip (2)		Appelez-nous	-
60	978026		Valve, Access (5/16``)			Immediately	$ 134.49
60	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
60	978028		Valve, Access (1/2)		Appelez-nous	-
60	978029		Valve Access (5/8``)				$ 93.85
60	978030		Valve, Access (3/4``)				$ 137.25
60	876764		Valve, Access(3/16``)			Immediately	$ 95.92
60	350942		Primer White (13 Oz. Spray Can)				$ 94.14
60	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
60	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
60	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
60	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
60	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
60	261890		Xenamel, Golden Wheat (13 Oz. Spray Can)		Appelez-nous	-
60	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
60	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
60	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
60	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
60	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
60	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
60	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
60	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
60	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
60	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
60	1117510		Torx Key				$ 5.84
60	515393		Transformer (115-230 Volt)		Appelez-nous	-
60	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
60	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
60	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
60	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
60	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
60	261891		Enamel, Golden Wheat (1 Qt. Uncut)		Appelez-nous	-
	LIT4361310		Repair Parts List		Appelez-nous	-
	LIT2152632		Use & Care Guide		Appelez-nous	-
	LIT2155143		Service And Wiring Sheet		Appelez-nous	-
	LIT2152634		Energy Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
