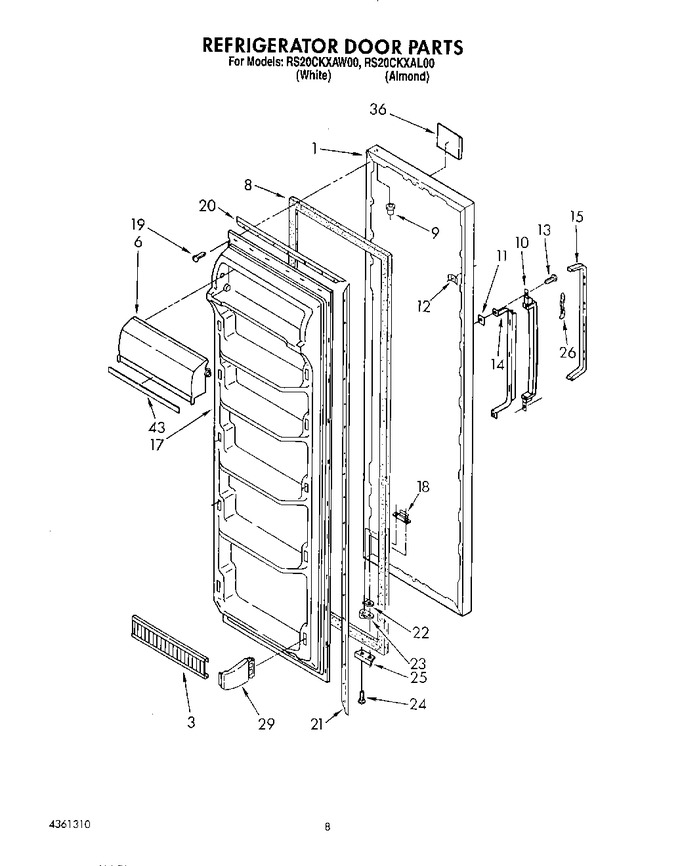

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2147643		Refrigerator Door (white)		Appelez-nous	-
1	2147645		Refrigerator Door (almond)		Appelez-nous	-
3	1120852		Trim, Shelf (5)		Appelez-nous	-
6	2148289		Door, Compartment		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	2147526		Handle		Appelez-nous	-
11	2147097		Shim, Handle (2)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
13	WP489478		Screw   (Replaces: 489242)				$ 7.75
14	1127465		Reinforcement, Handle		Appelez-nous	-
15	2147581		Insert, Handle		Appelez-nous	-
17	1129249		Panel, Interior Door		Appelez-nous	-
18	988402		Tap Plate		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
20	1118301		Retainer, Gasket		Appelez-nous	-
21	1117766		Retainer, Gasket				$ 36.55
22	WP1104787		Shim   (Replaces: 1104787)				$ 7.58
23	4318165		Cam, Door Closer   (Replaces: 1115905)			Immediately	$ 27.36
24	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
25	1115906		Bracket, Door Stop		Appelez-nous	-
26	849445		Handle, Reinforcement		Appelez-nous	-
29	1110713		Trim, End Cap				$ 5.84
36	2160005		Nameplate		Appelez-nous	-
43	1124432		Trim, Compartment Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
