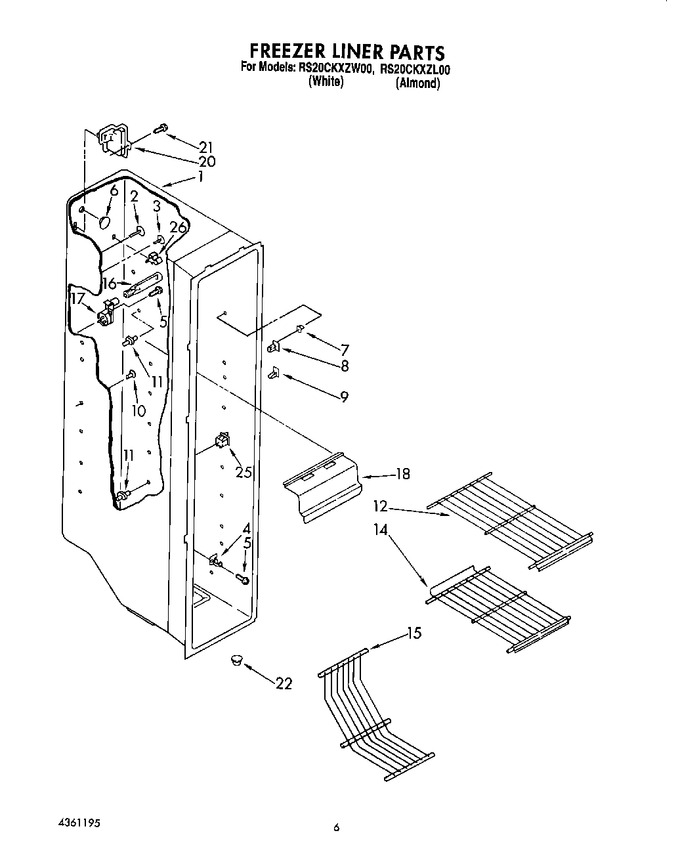

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	944795		Hole Plug		Appelez-nous	-
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
4	1108436		Evaporator, Support		Appelez-nous	-
5	WP488729		Screw, 8 X 1/2   (Replaces: 489196)			Immediately	$ 8.28
6	655411		Hole Plug		Appelez-nous	-
7	946355		Support Stud (8)		Appelez-nous	-
8	946356		Stud (3)		Appelez-nous	-
9	1106982		Stud (3)		Appelez-nous	-
10	1110779		Grommet, (6)		Appelez-nous	-
11	819091		Saddle Stud (left Side)   (Replaces: 946358)				$ 41.66
11	819091		Saddle Stud (right Side)   (Replaces: 946357)				$ 41.66
12	1106979		Shelf		Appelez-nous	-
14	1106980		Shelf (3)		Appelez-nous	-
15	2148400		Trivet		Appelez-nous	-
16	WP548049		Light Bulb   (Replaces: 548049)				$ 90.67
17	1108630		Socket Assembly		Appelez-nous	-
18	1108445		Lens, Light		Appelez-nous	-
20	1129915		Cover, Wiring		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
22	942768		Fitting, Drain		Appelez-nous	-
25	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
26	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
