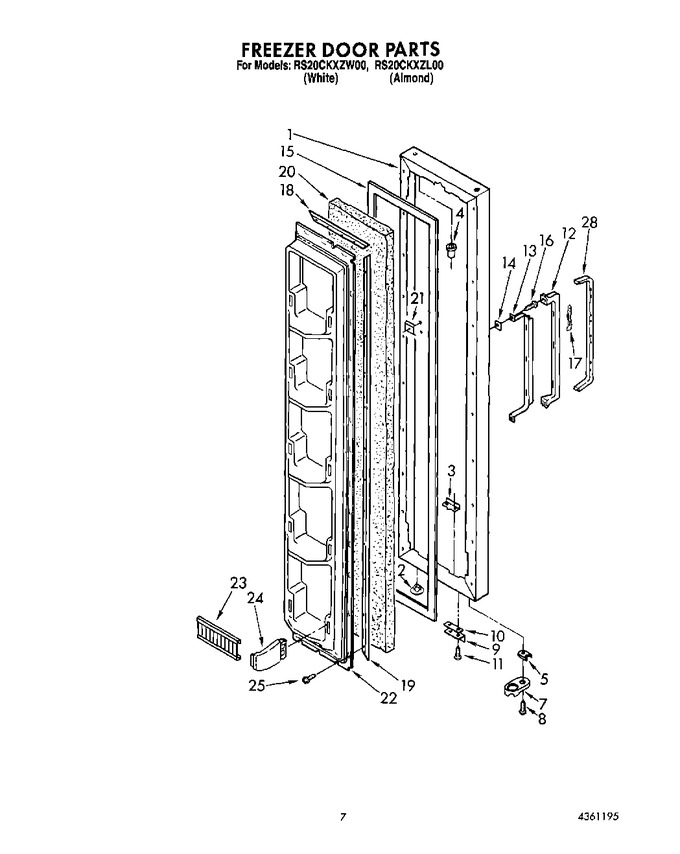

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362013		Freezer, Door Panel (almond (also Order Item 20))		Appelez-nous	-
1	4362012		Freezer, Door Panel (white)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
2	989197		Hole Plug (almond)		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
7	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
8	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
9	1115906		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	WP489069		Screw, 8 X 5/8   (Replaces: 488938)			Immediately	$ 8.40
12	2147526		Handle Center		Appelez-nous	-
13	1127465		Reinforcement, Handle		Appelez-nous	-
14	2147097		Shim, Handle		Appelez-nous	-
15	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
16	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
17	849445		Reinforcement (3)		Appelez-nous	-
18	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
19	1117766		Gasket Retainer, Side (2)				$ 36.55
20	876029		Foam Insulation		Appelez-nous	-
21	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
22	1129241		Panel, Interior Door		Appelez-nous	-
23	1120856		Trim, Door Shelf (5)		Appelez-nous	-
24	WP2196100		End Cap, Trim (10)   (Replaces: 1110719)			Immediately	$ 9.09
25	WP489069		Screw, (28)   (Replaces: 489101)			Immediately	$ 8.40
28	2147581		Trim, Handle		Appelez-nous	-
