SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Freezer Door


06 - Refrigerator Door


07 - Unit


08 - Air Flow


09 - Control, Lit/optional

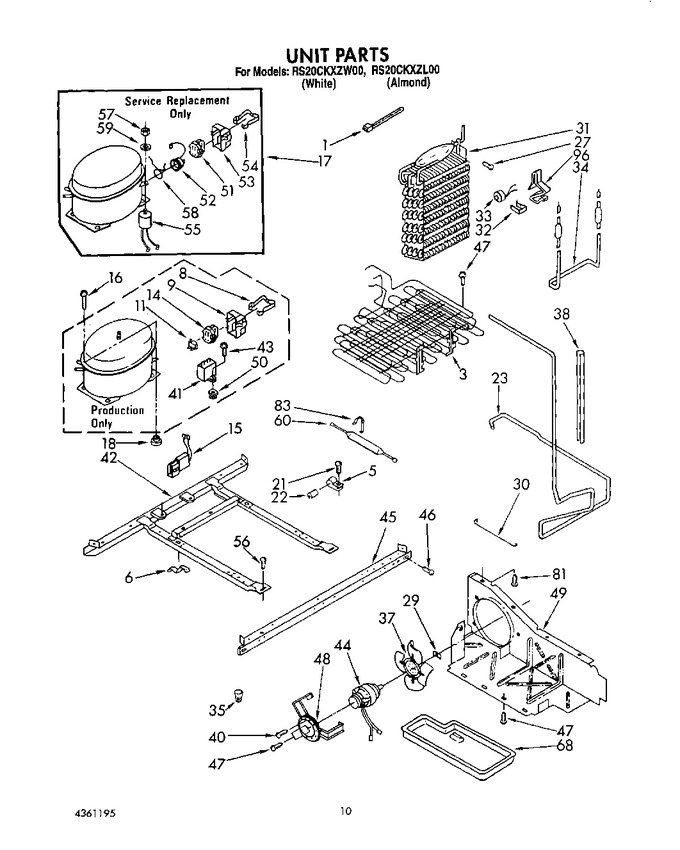

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	851095		Strap		Appelez-nous	-
3	1127573		Condenser		Appelez-nous	-
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
8	938384		Strap, Cover		Appelez-nous	-
9	1108115		Cover		Appelez-nous	-
11	2154781		Overload		Appelez-nous	-
14	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
15	1118850		Housing Plug		Appelez-nous	-
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489373)				$ 7.79
17	W10439652		Compressor (includes Items 51, 52, 53, 54, 55, 57, 58 & 59) (also Order 876765 Tube Kit)   (Replaces: 4317961)				$ 442.20
18	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 22.22
22	510769		Dampener		Appelez-nous	-
23	1127577		Exchanger, Heat		Appelez-nous	-
27	W11233072		Screw, 8 X 1/2   (Replaces: 489355)			Immediately	$ 14.72
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
30	1105612		Guard, Fan				$ 42.61
31	1106987		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387499		Bimetal, Defrost   (Replaces: 2154544)				$ 126.90
34	2154542		Heater, Defrost		Appelez-nous	-
35	227991		Wire Connector		Appelez-nous	-
37	1108179		Blade, Fan				$ 49.54
38	1114634		Sleeve		Appelez-nous	-
40	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.71
41	2154565		Capacitor, Run		Appelez-nous	-
42	1127942		Frame		Appelez-nous	-
43	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
44	833697		Motor, Fan   (Replaces: 2149963)			Immediately	$ 88.15
45	2149717		Rail, Front		Appelez-nous	-
46	489340		Screw		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	1127938		Air, Baffle		Appelez-nous	-
50	509812		Grommet		Appelez-nous	-
51	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
52	1108114		Overload		Appelez-nous	-
53	1108115		Terminal Cover		Appelez-nous	-
54	938384		Terminal Strap		Appelez-nous	-
55	WPW10662129		Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
56	488624		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
57	489142		Nut		Appelez-nous	-
58	1114190		Overload Spring		Appelez-nous	-
59	489143		Washer		Appelez-nous	-
60	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 57.13
68	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
81	489050		Screw, 8-32 X 1/2				$ 692.56
83	1127590		Clamp, Dryer		Appelez-nous	-
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
96	1108431		Clamp (4)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 134.49
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 137.25
96	876764		Valve, Access(3/16``)			Immediately	$ 95.92
