SELECT A DIAGRAM

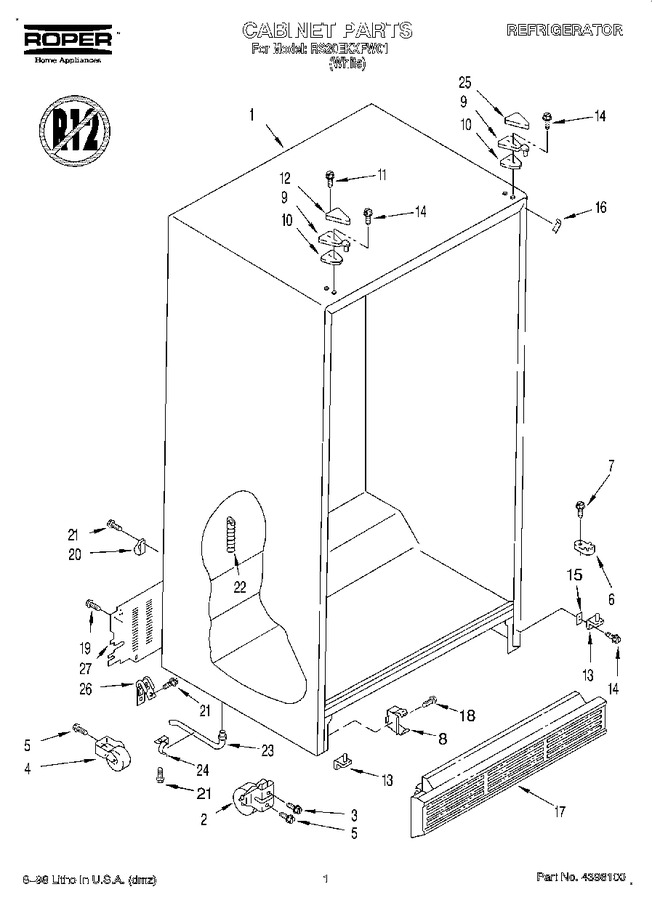

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 14.42
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	WP489427		Screw   (Replaces: 489427)				$ 7.84
6	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.90
7	WP489483		Screw   (Replaces: 489483)				$ 11.41
8	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
9	WP2196046		Hinge, Top (2)   (Replaces: 2196046)				$ 104.44
10	2196048		Shim, Hinge (2)		Appelez-nous	-
11	489284		Screw		Appelez-nous	-
12	1129262		Hinge Cover				$ 15.75
13	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 97.45
14	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
15	WP2181911		Spacer, Hinge   (Replaces: 2181911)				$ 34.87
16	2196094		Filler, Wrapper		Appelez-nous	-
17	2155476		Grille				$ 62.20
18	WP489478		Screw   (Replaces: 489478)				$ 8.18
19	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
20	WP488366		Clamp   (Replaces: 489385)				$ 11.92
21	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
22	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 53.45
23	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
24	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
25	1119787		Hinge Cover				$ 22.50
26	549193		Clamp-service Cord				$ 14.06
27	WP2188756		Cover, Unit   (Replaces: 2171936)				$ 148.75
