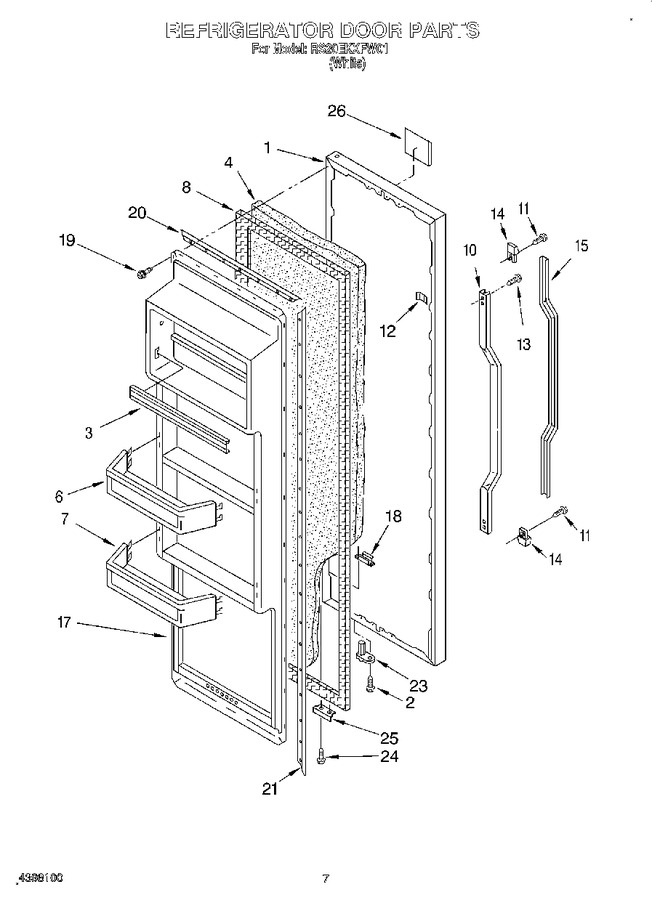

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194611W		Refrigerator Door Panel (also Order Item 4)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	2177862		Trim, Shelf		Appelez-nous	-
4	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
6	2177863		Shelf, Door		Appelez-nous	-
7	2177864		Shelf, Door		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
10	2198036		Handle, Insert		Appelez-nous	-
11	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
12	941242		Screw Anchor (2)		Appelez-nous	-
13	WP489463		Screw   (Replaces: 489463)				$ 8.25
14	2194778B		Endcap		Appelez-nous	-
15	2198037		Insert, Handle		Appelez-nous	-
17	2177858		Panel, Interior		Appelez-nous	-
18	2196135		Tap, Plate				$ 18.96
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
20	1118301		Retainer, Gasket		Appelez-nous	-
21	1117766		Retainer, Gasket				$ 36.55
23	WP2182179		Cam, Door Closer   (Replaces: 2182178)			Immediately	$ 7.20
24	WP489483		Screw   (Replaces: 489420)				$ 11.41
25	2195950		Bracket, Door Stop				$ 5.84
26	2163676		Nameplate				$ 36.02
