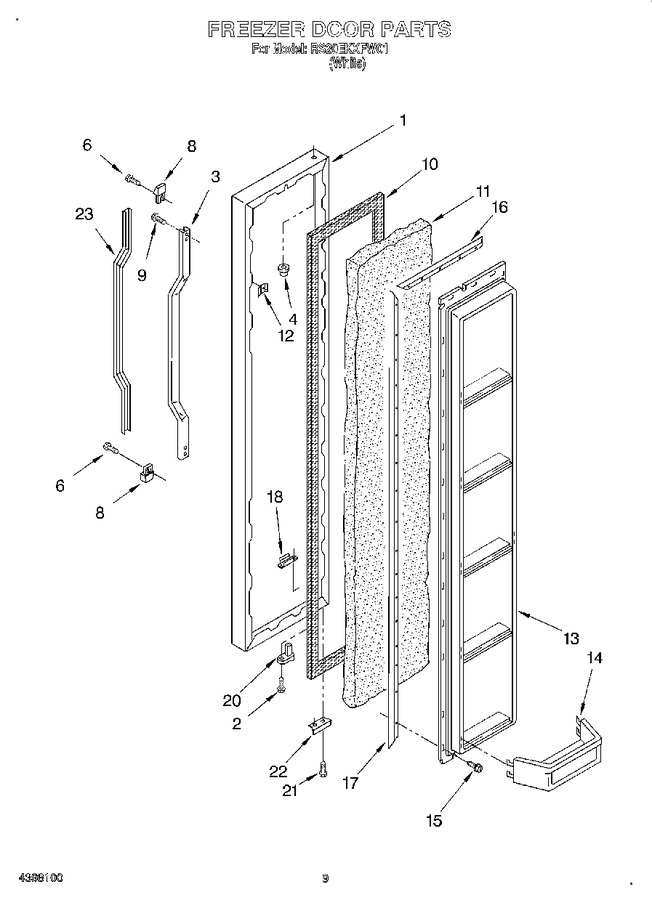

SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194610W		Freezer Door Panel (also Order Item 11)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	2198036		Handle, Insert		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
6	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
8	2194778B		Endcap		Appelez-nous	-
9	WP489463		Screw   (Replaces: 489463)				$ 8.25
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1129243		Panel, Interior Door		Appelez-nous	-
14	2177865		Trim, Shelf (5)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
16	1117767		Retainer, Gasket		Appelez-nous	-
17	1117766		Retainer, Gasket				$ 36.55
18	2196135		Tap, Plate				$ 18.96
20	WP2182179		Cam, Door Closer   (Replaces: 2182178)			Immediately	$ 6.39
21	WP489483		Screw   (Replaces: 489420)				$ 11.41
22	2195950		Bracket, Door Stop				$ 5.84
23	2198037		Insert, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
