Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2179350 Deflector Special Order $ 85.89

2 4388538 Shelf Stud (10)   (Replaces: 1110718) In-Stock Immediately $ 32.85

3 W10508993 Cover, Crisper   (Replaces: 2173394) Special Order $ 305.85

4 4388539 Shelf Stud   (Replaces: 2172943) Special Order $ 22.28

5 2174483 Gasket, Rear Appelez-nous -
6 2163572 Shelf Assembly, Cantilever (2) Appelez-nous -
7 W10864399 Glass, Crisper Cover   (Replaces: 2173405) Special Order $ 232.03

8 W10508993 Cover, Meat Pan   (Replaces: 2173398) Special Order $ 305.85

9 1125594 Retainer, Glass Appelez-nous -
10 2163573 Glass (3) Appelez-nous -
11 2174442 Gasket, Front Appelez-nous -
12 WP2188656 Pan, Crisper   (Replaces: 2173384) Special Order $ 143.22

13 2179443 Shelf, Cantilever (snack Bin) Special Order $ 116.68

14 W11497323 Snack Bin   (Replaces: 2173400) Special Order $ 234.84

17 WP2188664 Pan, Meat   (Replaces: 2173385) In-Stock Immediately $ 92.70


    View Diagram in Separate Window     Print Icon   Print Part List

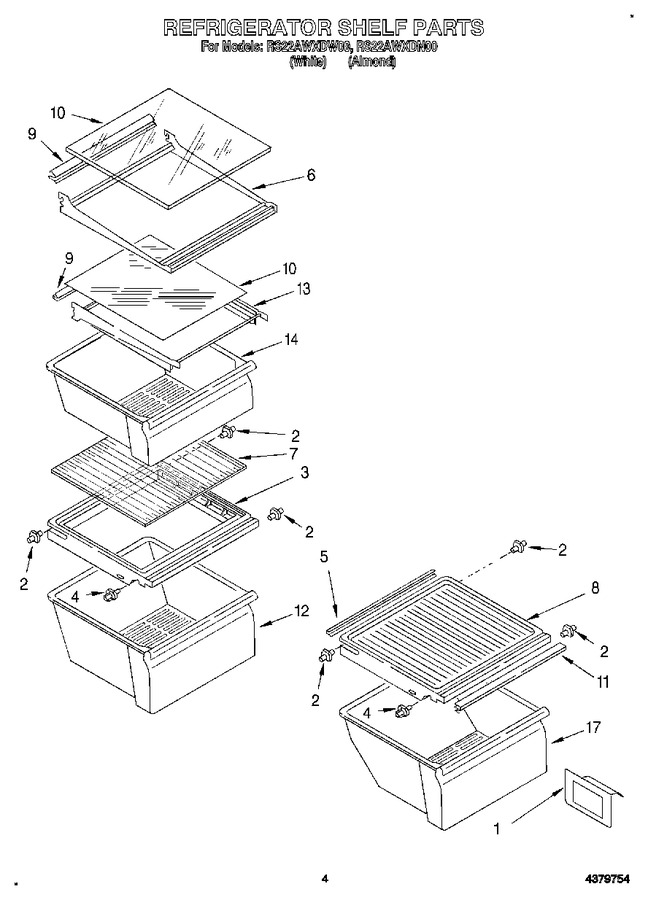

Diagram for RS22AWXDW00
