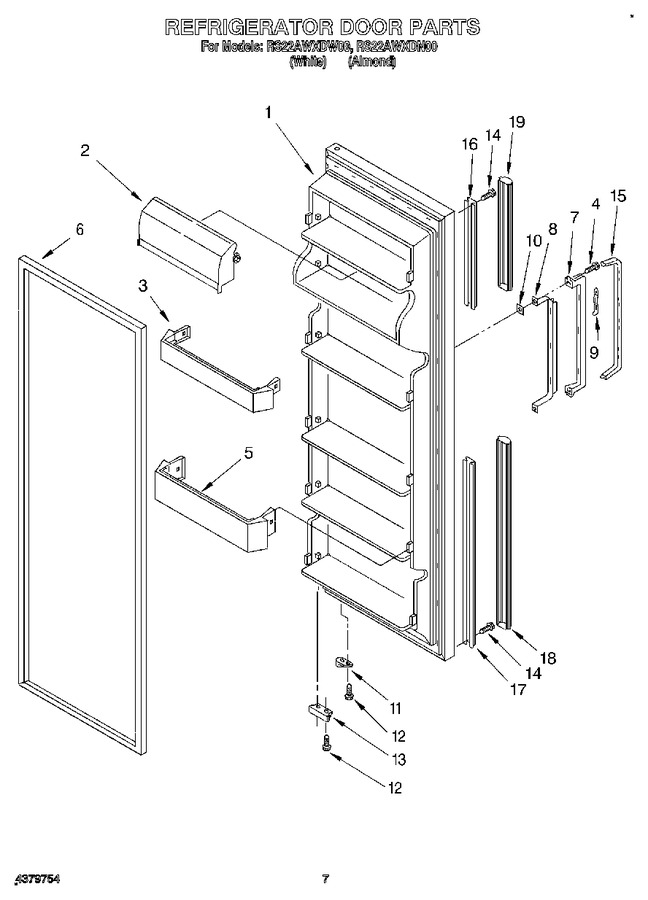

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171490		Refrigerator Door (white)		Appelez-nous	-
1	2171491		Refrigerator Door (almond (includes Item No.6))		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2173171)			Immediately	$ 89.42
3	2173173		Shelf Bin (3)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
5	WP2177962K		Shelf Bin (2)   (Replaces: 2173174)				$ 85.14
6	2159073		Door Gasket, Magnetic (service)				$ 333.19
7	2147470		Handle, Center (white)		Appelez-nous	-
7	2170066		Handle, Center (almond)		Appelez-nous	-
8	1127465		Reinforcement, Handle		Appelez-nous	-
9	849445		Clip, Handle		Appelez-nous	-
10	2147097		Shim		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2155332		Bracket, Door Stop		Appelez-nous	-
14	WP489478		Screw   (Replaces: 489242)				$ 8.18
15	2147581		Insert, Handle		Appelez-nous	-
16	2147898		Retainer, Top		Appelez-nous	-
17	2147896		Retainer (bottom)		Appelez-nous	-
18	2170068		Extension, Bottom (almond)		Appelez-nous	-
18	2147471		Extension, Bottom (white)		Appelez-nous	-
19	2170067		Extension, Top (almond)		Appelez-nous	-
19	2147472		Extension, Top (white)		Appelez-nous	-
