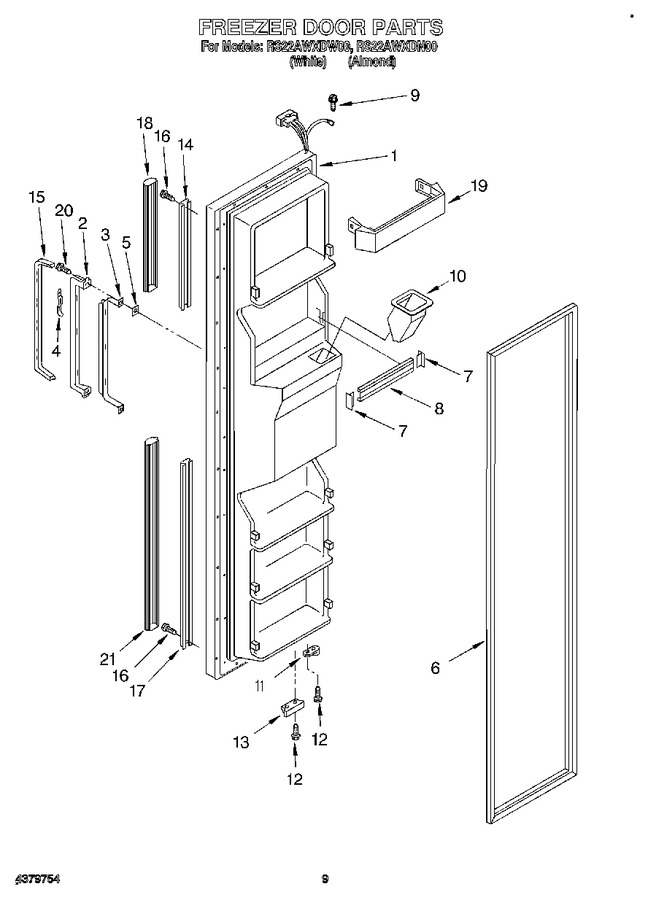

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2173424		Freezer Door (white)		Appelez-nous	-
1	2173425		Freezer Door (almond (includes Item No.6 And Dispenser Front Parts))		Appelez-nous	-
2	2170066		Handle, Center (almond)		Appelez-nous	-
2	2147470		Handle, Center (white)		Appelez-nous	-
3	1127465		Reinforcement, Handle		Appelez-nous	-
4	849445		Clip, Handle		Appelez-nous	-
5	2147097		Shim		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 323.60
7	2171356		Trim, Door Shelf		Appelez-nous	-
8	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
9	WP488234		Screw   (Replaces: 489422)				$ 7.08
10	2156146		Chute, Ice		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2155332		Bracket, Door Stop		Appelez-nous	-
14	2147898		Retainer, Top		Appelez-nous	-
15	2147581		Insert, Handle		Appelez-nous	-
16	WP489478		Screw   (Replaces: 489242)				$ 8.18
17	2147896		Retainer (bottom)		Appelez-nous	-
18	2170067		Extension, Top (almond)		Appelez-nous	-
18	2147472		Extension, Top (white)		Appelez-nous	-
19	2171268		Door, Shelf (4)		Appelez-nous	-
20	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
21	2170068		Extension, Bottom (almond)		Appelez-nous	-
21	2147471		Extension, Bottom (white)		Appelez-nous	-
