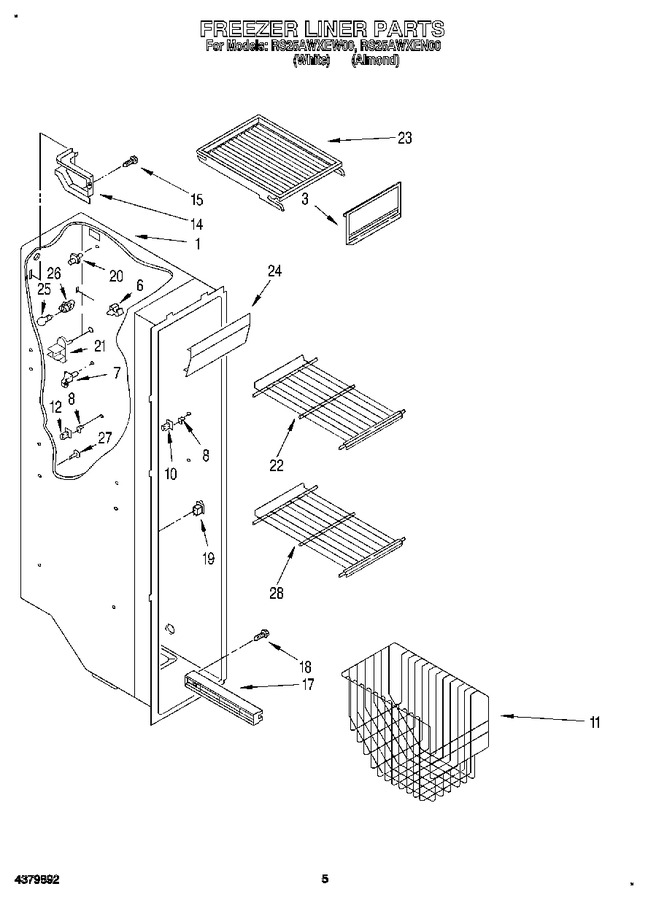

04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 91.63
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	1115317		Support, Stud		Appelez-nous	-
8	946355		Support, Stud		Appelez-nous	-
10	946356		Stud, Front		Appelez-nous	-
11	2181764		Basket, Slope		Appelez-nous	-
12	1106982		Stud, Rear		Appelez-nous	-
14	2155572		Cover, Wiring		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
17	2181760		Shelf Track (right Side)		Appelez-nous	-
17	2181759		Shelf Track (left Side)		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.76
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
20	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
21	1115386		Stud, Shelf		Appelez-nous	-
22	WP2174267		Shelf   (Replaces: 2174267)				$ 93.35
23	2171714		Shelf, Top Compartment		Appelez-nous	-
24	2171705		Lens, Light				$ 94.68
25	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
27	2176134		Grommet (8)				$ 5.83
28	2174268		Shelf (2)				$ 38.12
