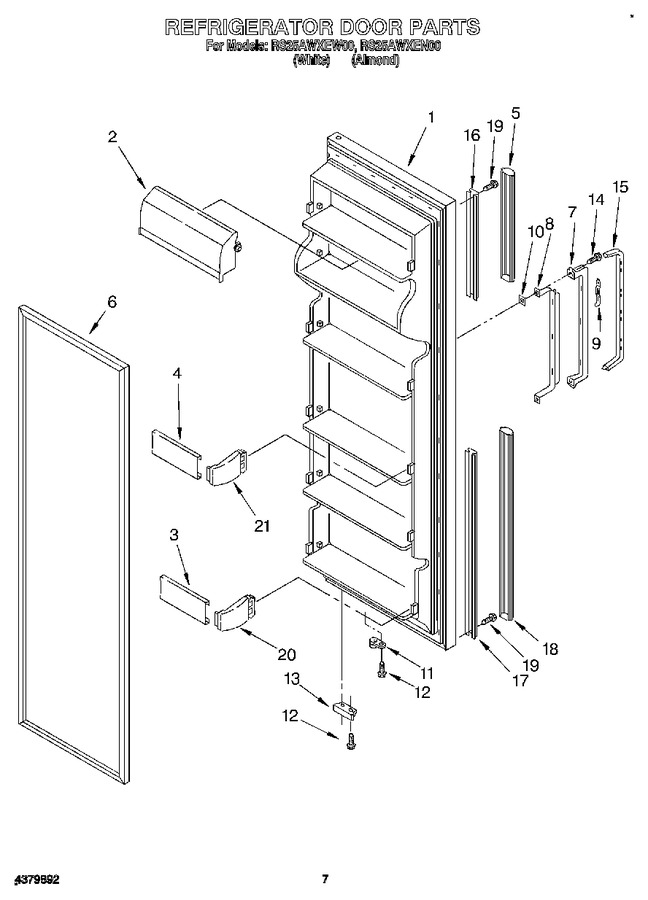

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2173160		Refrigerator Door (includes No.6) (white)		Appelez-nous	-
1	2173161		Refrigerator Door (includes No.6) (almond)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2182780)			Immediately	$ 89.42
3	2182779		Trim, Door (4)		Appelez-nous	-
4	2173390		Trim, Door		Appelez-nous	-
5	2173176		Extension (top) (almond)		Appelez-nous	-
5	2163432		Extension (top) (white)		Appelez-nous	-
6	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
7	2147470		Handle (white)		Appelez-nous	-
7	2170066		Handle (almond)		Appelez-nous	-
8	1127465		Reinforcement, Handle		Appelez-nous	-
9	849445		Clip, Handle		Appelez-nous	-
10	2147097		Shim, Handle		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2155332		Bracket, Door Stop		Appelez-nous	-
14	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
15	2147581		Insert, Handle		Appelez-nous	-
16	2147895		Retainer (top)		Appelez-nous	-
17	2147896		Retainer (bottom)		Appelez-nous	-
18	2170068		Extension, Bottom (almond)		Appelez-nous	-
18	2147471		Extension, Bottom (white)		Appelez-nous	-
19	WP489478		Screw   (Replaces: 489242)				$ 8.18
20	WP2195916K		End Cap (8)   (Replaces: 2156002)			Immediately	$ 13.18
21	WP2195915		End Cap (2)   (Replaces: 2156000)				$ 13.72
