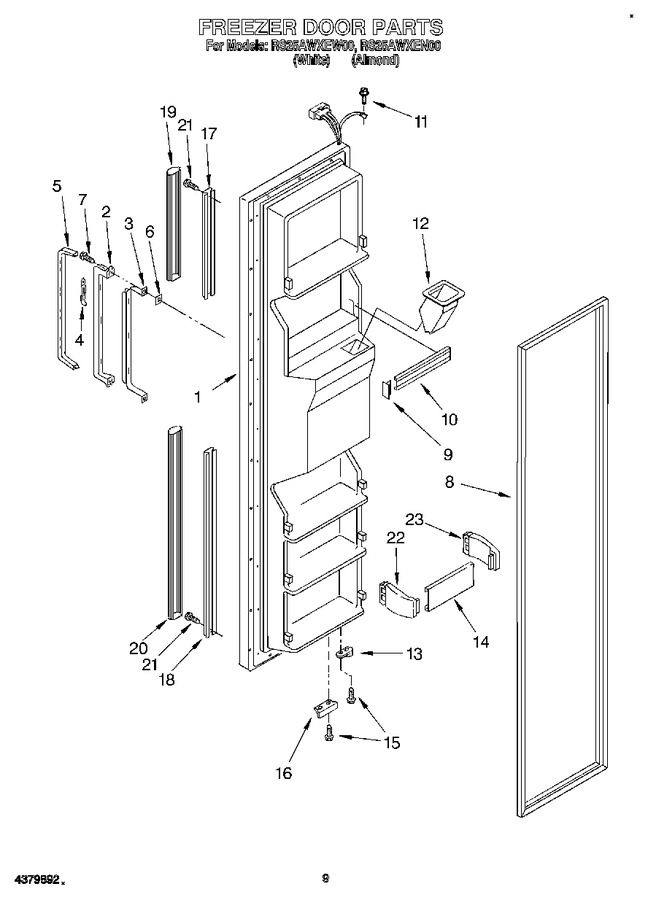

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2173433		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2173434		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	2147470		Handle (white)		Appelez-nous	-
2	2170066		Handle (almond)		Appelez-nous	-
3	1127465		Reinforcement, Handle		Appelez-nous	-
4	849445		Clip, Handle (3)		Appelez-nous	-
5	2147581		Insert, Handle		Appelez-nous	-
6	2147097		Shim, Handle (2)		Appelez-nous	-
7	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
8	2159074		Door Gasket, Magnetic (service)				$ 325.70
9	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
10	WPW10307490		Trim, Shelf   (Replaces: 2182784)			Immediately	$ 24.27
11	WP488234		Screw   (Replaces: 489422)				$ 7.08
12	2156146		Chute, Ice		Appelez-nous	-
13	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
14	2182787		Trivet, Shelf		Appelez-nous	-
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2155332		Bracket, Door Stop		Appelez-nous	-
17	2147895		Retainer (top)		Appelez-nous	-
18	2147896		Retainer (bottom)		Appelez-nous	-
19	2163432		Extension (top) (white)		Appelez-nous	-
19	2173176		Extension (top) (almond)		Appelez-nous	-
20	2147471		Extension, Bottom (white)		Appelez-nous	-
20	2170068		Extension, Bottom (almond)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	2156005		End Cap (4)		Appelez-nous	-
23	WP2195916K		Endcap (4)   (Replaces: 2156002)			Immediately	$ 13.18
