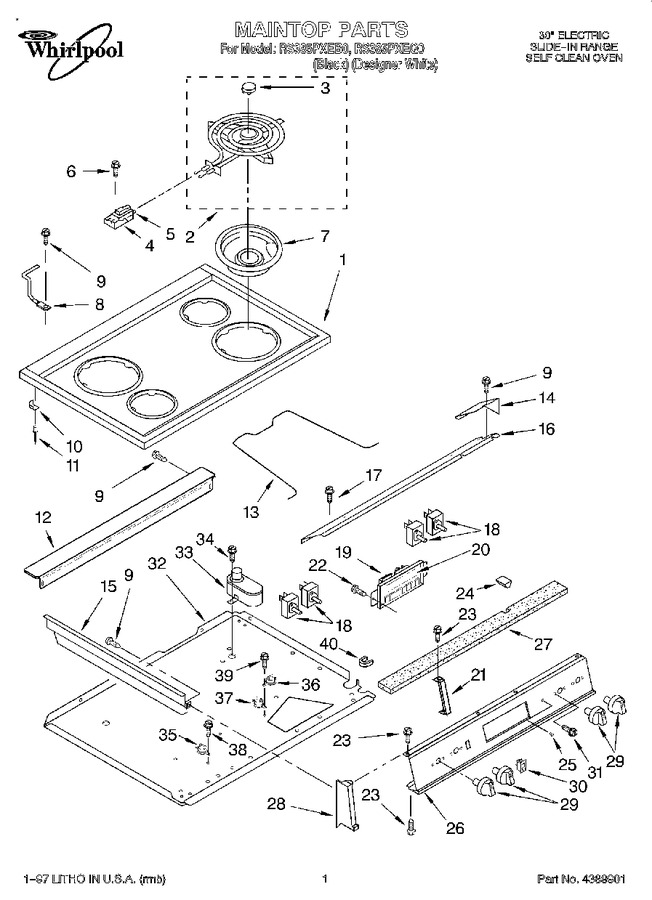

01 - Maintop
02 - Oven Door
03 - Lock Motor
04 - Oven Body
05 - Fan, Literature
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4389584 | Cooktop (white) |
|
- | |||||
| 1 | 4389894 | Cooktop (black) |
|
- | |||||
| 2 | WP3177565 | Element, Surface (includes Illus 3) (8`` Coil (2)) (Replaces: 4389588) |
|
$ 173.89 | |||||
| 2 | WPY04100165 | Element, Surface (includes Illus 3) (6`` Coil (2)) (Replaces: 4389587) |
|
Immediately | $ 56.24 | ||||
| 3 | 4389586 | Medallion (4) |
|
- | |||||
| 4 | 330031 | Block, Terminal (Replaces: 4389596) |
|
Immediately | $ 16.09 | ||||
| 5 | WP4332752 | Clip, Term Block (Replaces: 4389597) |
|
$ 7.60 | |||||
| 6 | 4389652 | Screw, Term Block |
|
- | |||||
| 7 | 4389592 | Bowl, Burner (8`` Chrome) |
|
- | |||||
| 7 | 4389589 | Bowl, Burner (6`` Black) |
|
- | |||||
| 7 | 4389590 | Bowl, Burner (8`` Black) |
|
- | |||||
| 7 | 4389591 | Bowl, Burner (6`` Chrome) |
|
- | |||||
| 8 | 4389389 | Hinge, Maintop (right) |
|
- | |||||
| 8 | 4389390 | Hinge, Maintop (left) |
|
- | |||||
| 9 | WP308685 | Screw, Mounting (Replaces: 4389529) |
|
Immediately | $ 7.87 | ||||
| 10 | 4389392 | Bracket, Hinge (2) |
|
- | |||||
| 11 | 4389653 | Screw, Hinge Brkt. |
|
- | |||||
| 12 | 4389872 | Filler, Backsplash (white) |
|
- | |||||
| 12 | 4389917 | Filler, Backsplash (black) |
|
- | |||||
| 13 | 4389598 | Rod, Top Support |
|
- | |||||
| 14 | 4389582 | Cover, Wire |
|
- | |||||
| 15 | 4389364 | Extension, Side (2) |
|
- | |||||
| 16 | 4389599 | Cover, Wire |
|
- | |||||
| 17 | 4389646 | Screw, Utility |
|
- | |||||
| 18 | W10900107 | Control, Element (l.f. & R.r.) (Replaces: 4389572) |
|
Immediately | $ 57.63 | ||||
| 18 | W10900107 | Control, Element (r.f. & L.r.) (Replaces: 4389571) |
|
Immediately | $ 57.63 | ||||
| 19 | 4389570 | Erc |
|
- | |||||
| 20 | 4389366 | Plate, Clock (black) |
|
- | |||||
| 20 | 4389367 | Plate, Clock (white) |
|
- | |||||
| 21 | 4389372 | Bracket, Clock (2) |
|
- | |||||
| 22 | 4389650 | Screw, Bracket (4) |
|
- | |||||
| 23 | W11233072 | Screw, Panel (8) (Replaces: 4389647) |
|
Immediately | $ 14.02 | ||||
| 24 | 4389577 | Light, Oven Ind. |
|
- | |||||
| 25 | WP9750343 | Lens, Ind. Light (Replaces: 4389578) |
|
Immediately | $ 5.71 | ||||
| 26 | 4389569 | Panel, Control (white) |
|
- | |||||
| 26 | 4389568 | Panel, Control (black) |
|
- | |||||
| 27 | 4389594 | Insulation, Panel |
|
- | |||||
| 28 | 4389411 | Endcap (l.h. Black) |
|
- | |||||
| 28 | 4389362 | Endcap (r.h. White) |
|
- | |||||
| 28 | 4389361 | Endcap (l.h. White) |
|
- | |||||
| 28 | 4389360 | Endcap (r.h. Black) |
|
- | |||||
| 29 | 4389574 | Knob, Control (4) (white) |
|
- | |||||
| 29 | 4389573 | Knob, Control (4) (black) |
|
- | |||||
| 30 | 4389370 | Switch, Oven Lite (white) |
|
- | |||||
| 30 | WP4314961 | Switch, Oven Lite (black) (Replaces: 4389369) |
|
$ 89.48 | |||||
| 31 | 4389649 | Screw, Mtg. (8) |
|
- | |||||
| 32 | 4389593 | Bottom, Burner Box |
|
- | |||||
| 33 | 4389595 | Vent Tube Assy. |
|
- | |||||
| 34 | 4389646 | Screw, Mtg. |
|
- | |||||
| 35 | 4389603 | Switch, |
|
- | |||||
| 36 | 4389604 | Switch |
|
- | |||||
| 37 | 4389605 | Switch, |
|
- | |||||
| 38 | 4389654 | Screw (6) |
|
$ 13.89 | |||||
| 39 | 4389650 | Screw (4) |
|
- | |||||
| 40 | 4389580 | Grommet (top) |
|
- | |||||
| 40 | 4389581 | Grommet (hose (2)) |
|
- |
