SELECT A DIAGRAM

01 - Maintop

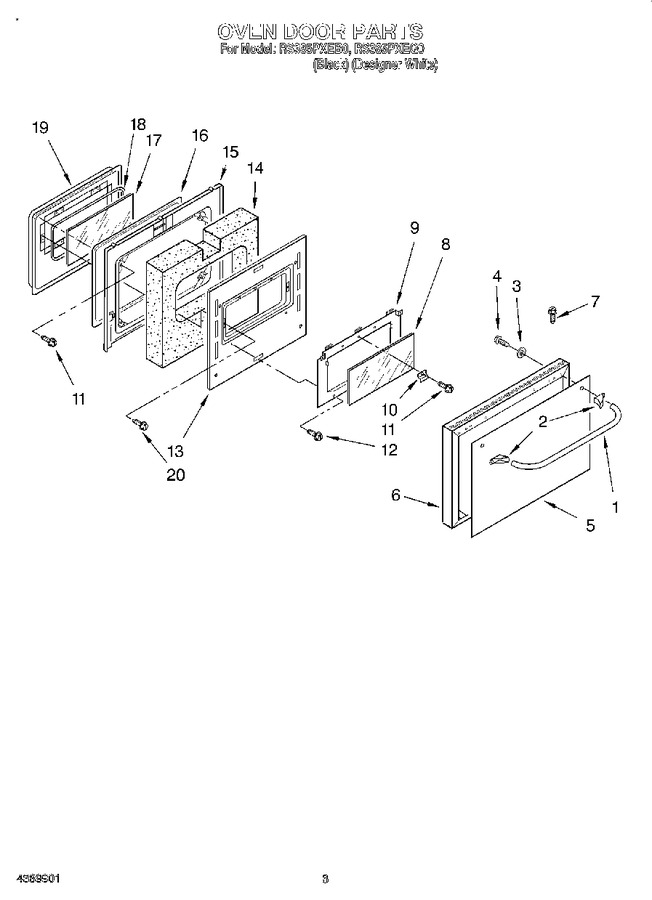

02 - Oven Door


03 - Lock Motor


04 - Oven Body


05 - Fan, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4389412		Handle, Oven Door (black)		Appelez-nous	-
1	4389413		Handle, Oven Door (white)		Appelez-nous	-
2	4389521		Endcap, Handle (black)		Appelez-nous	-
2	4389522		Endcap, Handle (white)		Appelez-nous	-
3	4389418		Spacer, Handle (2)		Appelez-nous	-
4	4389657		Screw, Handle (2)		Appelez-nous	-
5	4389575		Glass, Outer Door (white)		Appelez-nous	-
5	4389576		Glass, Outer Door (black)		Appelez-nous	-
6	4389602		Frame, Oven Door (black)		Appelez-nous	-
6	4389667		Frame, Oven Door (white)		Appelez-nous	-
7	4389552		Screw, Frame (6) (black)		Appelez-nous	-
7	4389538		Screw, Frame (6) (white)		Appelez-nous	-
8	4389402		Glass, Middle		Appelez-nous	-
9	4389399		Plate, Glass Mtg.		Appelez-nous	-
10	4389398		Retainer, Glass		Appelez-nous	-
11	4389540		Screw, Retainer		Appelez-nous	-
12	4389534		Screw, Retainer		Appelez-nous	-
13	4389397		Retainer, Insulation		Appelez-nous	-
14	4389394		Insulation, Door		Appelez-nous	-
15	4389396		Lining, Door		Appelez-nous	-
16	4389600		Gasket, Oven Door		Appelez-nous	-
17	4389403		Glass, Inner		Appelez-nous	-
18	4389408		Seal, Inner Glass		Appelez-nous	-
19	4389395		Plug, Oven Door		Appelez-nous	-
20	WP308685		Screw   (Replaces: 4389529)			Immediately	$ 7.87

    View Diagram in Separate Window       Print Part List
