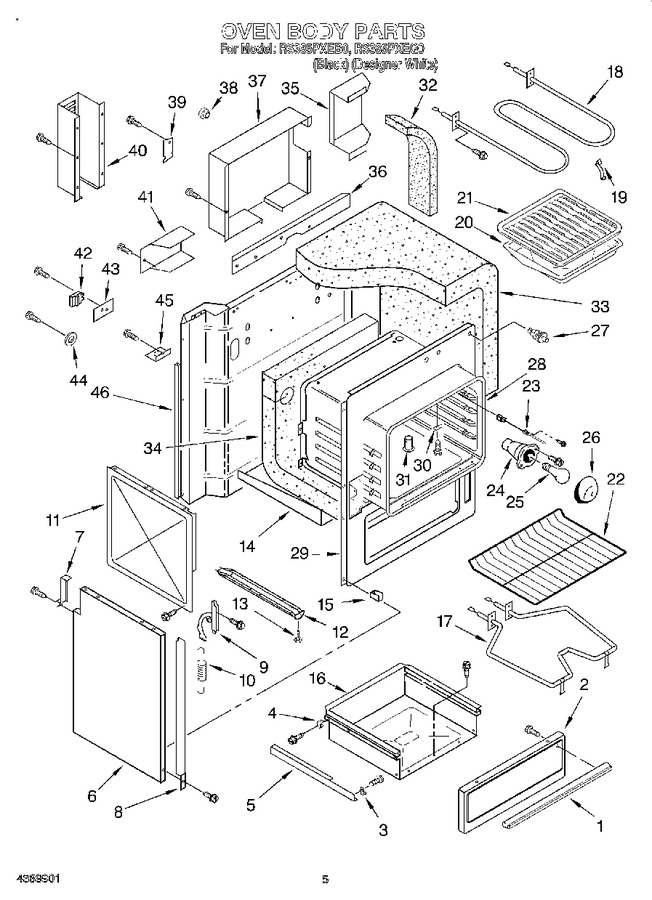

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4389665 | Handle, Drawer (white) |
|
- | |||||
| 1 | 4389648 | Handle, Drawer (screw (2)) |
|
- | |||||
| 1 | 4389621 | Handle, Drawer (black) |
|
- | |||||
| 2 | 4389540 | Panel, Drawer (screw) |
|
- | |||||
| 2 | 4389620 | Panel, Drawer (white) |
|
- | |||||
| 2 | 4389619 | Panel, Drawer (black) |
|
- | |||||
| 3 | 4389477 | Stop, Glide (2) |
|
- | |||||
| 3 | 4389541 | Screw (2) |
|
- | |||||
| 4 | 4389537 | Screw (2) |
|
- | |||||
| 4 | 4389476 | Stop, Glide (2) |
|
- | |||||
| 5 | 4389470 | Support, Drawer (2) |
|
- | |||||
| 6 | 4389618 | Panel, Bodyside (right Side) |
|
- | |||||
| 6 | 4389617 | Panel, Bodyside (left Side) |
|
- | |||||
| 7 | 4389646 | Screw |
|
- | |||||
| 7 | 4389638 | Filler, Rear (2) |
|
- | |||||
| 8 | 4389467 | Trim, Side (l.h. White) |
|
- | |||||
| 8 | 4389468 | Trim, Side (r.h. White) |
|
- | |||||
| 8 | 4389465 | Trim, Side (l.h. Black) |
|
- | |||||
| 8 | 4389466 | Trim, Side (r.h. Black) |
|
- | |||||
| 9 | 4389473 | Hinge, Oven Door (left) |
|
- | |||||
| 9 | 4389472 | Hinge, Oven Door (right) |
|
- | |||||
| 9 | 4389538 | Hinge, Oven Door (screw (6)) |
|
- | |||||
| 10 | 4389474 | Spring, Door (2) |
|
- | |||||
| 11 | 4389613 | Retainer, Side (2) |
|
- | |||||
| 11 | WP308685 | Screw (Replaces: 4389529) |
|
Immediately | $ 7.87 | ||||
| 12 | 4389632 | Rail, Base (2) (includes No. 13) |
|
- | |||||
| 13 | 4389478 | Leg, Leveler (4) |
|
- | |||||
| 14 | 4389614 | Retainer, Lower |
|
- | |||||
| 15 | 4389558 | Spacer, Body (4) |
|
- | |||||
| 16 | 4389612 | Drawer, Storage |
|
- | |||||
| 17 | 4389585 | Element, Bake |
|
- | |||||
| 18 | WP308685 | Screw (Replaces: 4389529) |
|
Immediately | $ 7.87 | ||||
| 18 | WP4334925 | Element, Broil (Replaces: 4389625) |
|
$ 147.29 | |||||
| 19 | 4389639 | Support, Broil (3) |
|
- | |||||
| 20 | 4396923 | Pan, Broiler (Replaces: 4389456) |
|
Immediately | $ 57.82 | ||||
| 21 | 4396923 | Grid, Broiler (Replaces: 4389457) |
|
Immediately | $ 57.82 | ||||
| 22 | 4389455 | Rack, Oven (2) |
|
- | |||||
| 23 | 4389527 | Screw (2) |
|
- | |||||
| 23 | 4389906 | Sensor, Oven |
|
- | |||||
| 24 | 4389628 | Housing, Lite |
|
- | |||||
| 24 | 4389536 | Screw (2) |
|
- | |||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 4389460) |
|
Immediately | $ 18.67 | ||||
| 26 | 4389629 | Lens, Oven Lite |
|
- | |||||
| 27 | 4389630 | Switch, Door Lite |
|
- | |||||
| 28 | 4389609 | Body, Oven |
|
- | |||||
| 29 | 4389610 | Frame, Front |
|
- | |||||
| 30 | 4389475 | Cover, Front |
|
- | |||||
| 30 | WP308685 | Screw (Replaces: 4389535) |
|
Immediately | $ 7.87 | ||||
| 31 | 4389637 | Tube, Vent |
|
- | |||||
| 32 | 4389624 | Insulation, Top & Side (2) |
|
- | |||||
| 33 | 4389622 | Insulation, Wrap |
|
- | |||||
| 34 | 4389623 | Insulation, Back & Bottom |
|
- | |||||
| 35 | 4389442 | Shield, Wire |
|
- | |||||
| 36 | 4389631 | Shield, Wire |
|
- | |||||
| 37 | 4389615 | Shield, Upper |
|
- | |||||
| 37 | 4389646 | Screw |
|
- | |||||
| 38 | 4389660 | Bushing, Snap |
|
- | |||||
| 39 | 4389646 | Screw |
|
- | |||||
| 39 | 4389634 | Plate, Flue Cover |
|
- | |||||
| 40 | 4389616 | Cover, Upper Wire |
|
- | |||||
| 40 | WP308685 | Screw (Replaces: 4389529) |
|
Immediately | $ 7.87 | ||||
| 41 | 4389635 | Cover, Lite Wire |
|
- | |||||
| 41 | WP308685 | Screw (Replaces: 4389529) |
|
Immediately | $ 7.87 | ||||
| 42 | 4389627 | Block, Terminal (pigtail) |
|
- | |||||
| 43 | 4389651 | Screw (2) |
|
- | |||||
| 43 | 4389579 | Shield, Disconnect |
|
- | |||||
| 44 | 4389658 | Washer, Ground |
|
- | |||||
| 44 | 4389540 | Screw |
|
- | |||||
| 45 | WP308685 | Screw (Replaces: 4389529) |
|
Immediately | $ 7.87 | ||||
| 45 | 4389633 | Plate, Cord Mtg. |
|
- | |||||
| 46 | 4389471 | Anti-tip Kit |
|
- | |||||
| 46 | 4389611 | Back, Main |
|
- |
