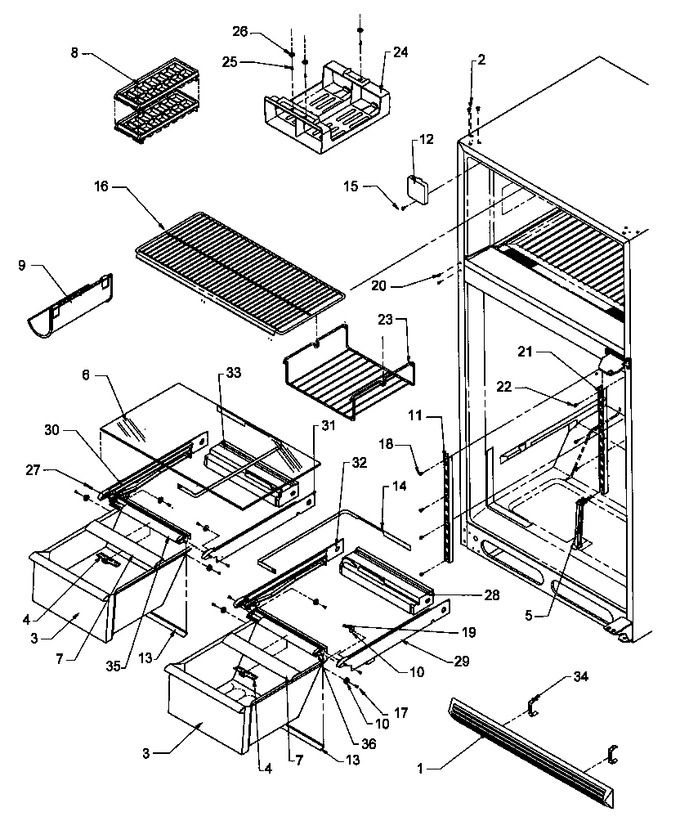

TX19S3L (BOM: P1195901W L) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	10474905	Grille, L Toe	Appelez-nous	-
2	M0310716	Plug	Appelez-nous	-
3	10430216	Pan-crisper	Appelez-nous	-
4	10797501	Slide, Crisper	Appelez-nous	-
5	10461901	Post, Crisper Support		Immediately	$ 25.85
6	10370016	Glass, Shelf (18)	Appelez-nous	-
7	10688026	Extr-l Crisp Fr	Appelez-nous	-
7	10688027	Extr-r Crisp Fr	Appelez-nous	-
8	WP841180A	Ice Tray (Replaces: D7725402)		Immediately	$ 47.84
9	10448901	Rack, Wine	Appelez-nous	-
10	10481001	Roller, Pan			$ 10.99
11	D7599002	Ladder, Center	Appelez-nous	-
12	D7874403	Cover-fl Tb/plug	Appelez-nous	-
13	10530202	Seal, Crisper	Appelez-nous	-
14	10467802	Band, Crisper Control (18-19)	Appelez-nous	-
15	67006425	Screw, Sm (Replaces: M0209616)		Immediately	$ 7.30
16	Y10440001	Shelf, Wire Frz. (18)	Appelez-nous	-
17	67006692	Screw, Shoulder (Replaces: M0238105)			$ 10.79
18	M0230923	Screw	Appelez-nous	-
19	67006692	Screw, Shoulder (Replaces: M0238105)			$ 10.79
20	M0310730	Plug Button (almond)	Appelez-nous	-
21	D7599105	Ladder, Side	Appelez-nous	-
22	67006425	Screw-sm No.8-1/2lg (Replaces: M0211017)		Immediately	$ 7.30
23	10250502	Rack, Freezer	Appelez-nous	-
24	10423001	Rack, Ice Service	Appelez-nous	-
25	M0219523	Screw	Appelez-nous	-
26	M0270508	Washer	Appelez-nous	-
27	67006692	Screw, Hi Lo (Replaces: M0237932)			$ 10.79
28	10433805	Rail, Crisper Back	Appelez-nous	-
29	10432701	Rail, Side Crisper	Appelez-nous	-
30	10432702	Rail, Side Crisper	Appelez-nous	-
31	10432803	Rail, Ctr. Crisper	Appelez-nous	-
32	10432804	Rail, Ctr. Crisper	Appelez-nous	-
33	10435605	Rail, Crisper Back	Appelez-nous	-
34	10551502	Clip, Toe Grille			$ 5.84
35	10687702	Rail, Crisper Front(l)	Appelez-nous	-
36	10687701	Rail, Crisper Fr0nt(r)	Appelez-nous	-
NI	10698532	Crisper Frame Assy.	Appelez-nous	-
